Brushless DC Electric Motor Manufacturers

Manufacturer Positioning & Range Overview

Hangzhou Beron Motor Co., Ltd. is a modern high-tech enterprise specializing in R&D, production and sales of energy-saving fans and micro-special motor fans. As a BLDC Motor manufacturer in China, we design brushless DC motors as core building blocks for OEM equipment, fan arrays, HVAC systems, refrigeration machines, power electronics and industrial drives.

Our BLDC Motor category covers two structural platforms: external rotor motors that allow direct impeller mounting, and internal rotor motors with shaft output for transmission-based applications. The range is reinforced by integrated-driver models with speed control, feedback outputs and multi-machine synchronization, making it a direct alternative to conventional AC induction motor packages in retrofit and new-build projects.

• External rotor BLDC: 80 mm to 450 mm frame diameter, 15 W to 5 kW, 12/24/48/310 V DC options.
• Integrated-driver BLDC: 310 V DC platform with 0–6.5 V DC or PWM speed command, IE4/IE5 equivalent efficiency for fan and pump duty.
• Quiet long-life BLDC: ball-bearing construction, 50,000 h service life platform, Hall or FOC control.
• Internal rotor BLDC: NdFeB magnets, low rotor inertia, fast start-stop response for positioning and drive tasks.

Product Range and Application Fit

The following table summarizes our current BLDC platform structure. Selection is always made around the impeller, load curve and control interface of your equipment.

For complete fan packages, these motor platforms integrate directly with our axial fan range, centrifugal fan range and duct fan range. We can deliver motor-only, motorized impeller, or complete fan assemblies depending on your production strategy.

Construction and Material Selection

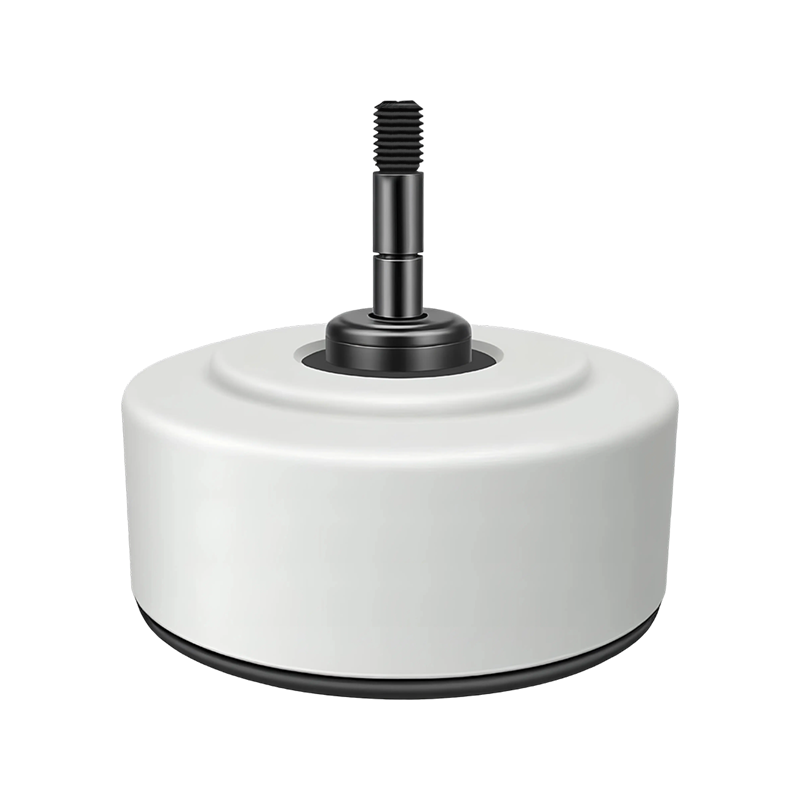

External rotor BLDC motors place the rotor outside the stator, so the impeller can be mounted directly without couplings, shafts or additional bearing housings. The compact axial length is 30–50% shorter than an internal rotor motor of the same power, which is valuable for ducted equipment and packaged thermal systems.

Internal rotor versions use neodymium iron boron permanent magnets. The high magnetic energy product and low inertia improve start-up response and support frequent start-stop cycles, which is why they suit positioning tasks and variable-speed drive applications.

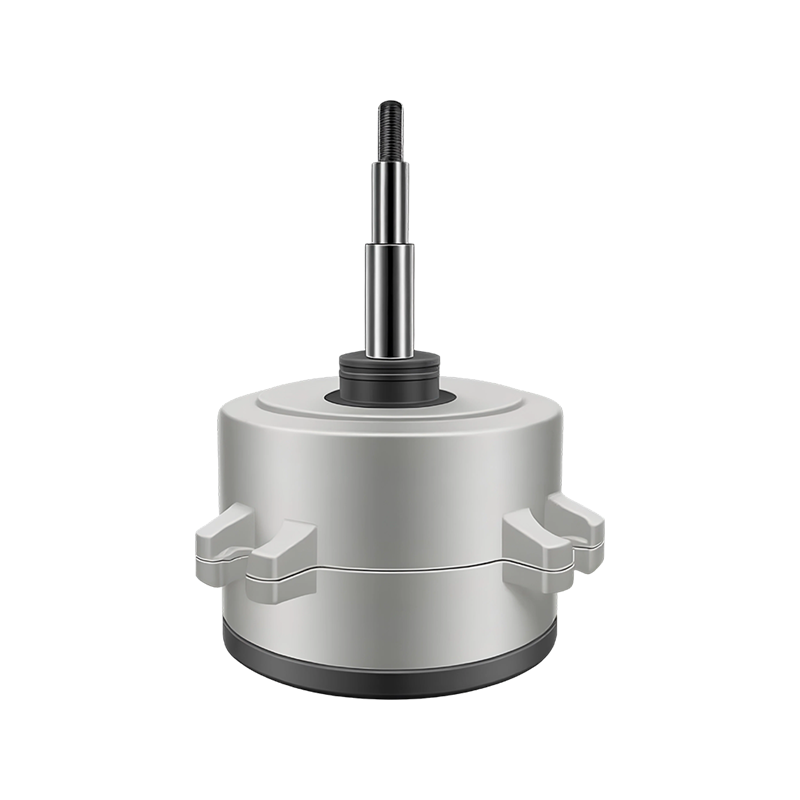

For long-life operation, our quiet BLDC series is built with ball bearings and designed for 50,000 h service life. Depending on the model and control topology, the motor can be specified with Hall sensors or FOC sensorless control.

Control and Automation Integration

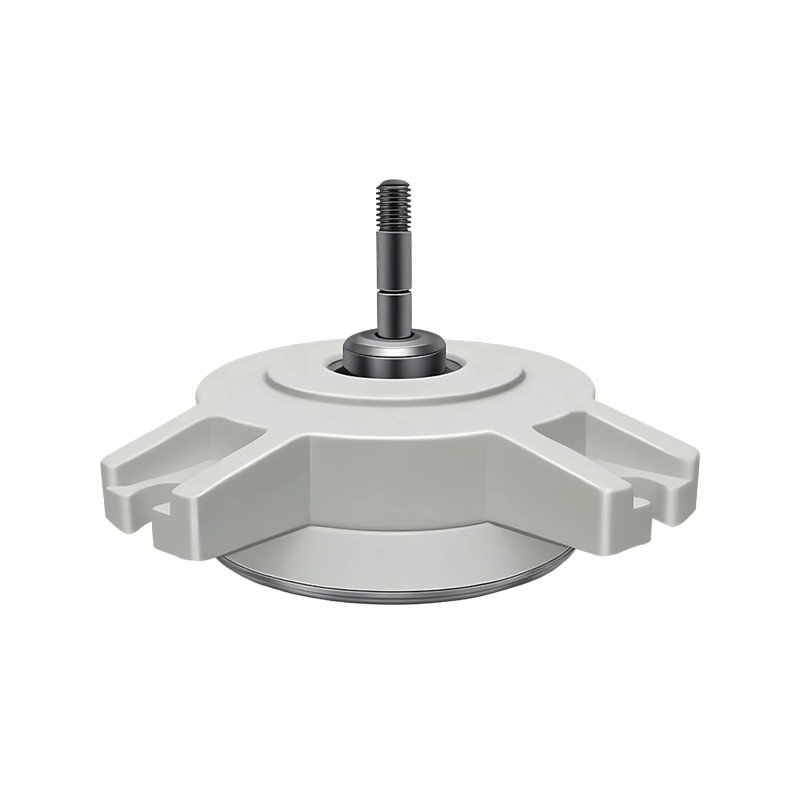

The integrated-driver series is designed for simple line integration. A 0–6.5 V DC or PWM speed command sets the operating point, while feedback outputs provide speed pulses (FG/TACH), running or lock status (RD), and fault alarm signals for the host controller.

• 3-channel Hall control: high starting torque, reliable low-speed and loaded starting.
• FOC sensorless control: rotor position estimation from back-EMF, lower noise and torque ripple, suitable for high temperature and high vibration environments.
• Master-slave mode: one control signal adjusts multiple motors, simplifying fan walls and parallel pump groups.
• Wiring: standard signal color layout is documented on the product datasheet for Vs, GND, Vcc, Vsp and FG.

Speed regulation range, ramp behavior and protection thresholds can be adjusted during project engineering.

Application Fit by Industry

BLDC motors from Beron are used in machinery and equipment, refrigeration, HVAC, household appliances, power electronics, IT communications and new energy storage.

• HVAC and ventilation: external rotor motors for axial and centrifugal fans, condenser fans and FFU units.
• Refrigeration and cold chain: speed-controlled motors for condenser and evaporator airflow where efficiency and low noise matter.
• Power electronics and IT: compact motors and fan packages for equipment cooling and cabinet ventilation.
• Industrial drives: internal rotor designs for AGV/AMR, robot joints, pumps and compressors.
• New energy storage: thermally managed enclosures using low-power DC fan motors with PWM control.

Quality Assurance and Acceptance Testing

We run two R&D and production centers in Hangzhou and Huzhou with wind tunnel laboratories, noise laboratories, comprehensive motor performance laboratories and aging laboratories. This infrastructure allows us to check airflow, sound, efficiency and endurance on the same platform families we offer.

The factory operates an ISO9001:2015 quality management system, and the BLDC product range carries CCC and CE marks and has passed RoHS and UL tests. For project orders we coordinate in-process inspection, factory acceptance testing and third-party inspection according to your supplier quality requirements.

Standard test records include rated input current, speed, torque, vibration and noise where applicable. Dimensional checks and wiring verification are completed before packaging.

Installation, Maintenance and Delivery Scope

Integrated-driver motors reduce installation work because no external inverter is required. For models with separated driver or custom control boards, we supply connection diagrams, torque values and mounting instructions.

Ball bearings and the sealed electronic assembly reduce required maintenance on the long-life platform. Spare parts, documentation and online commissioning support are provided as part of the project package.

Shipping documentation includes packing lists, inspection records and compliance certificates where requested. We support FOB, DAP and DDP terms and coordinate international logistics for distributor and OEM orders.

Frequently Asked Questions

Can you supply BLDC motors as replacements for EBM-Papst, Nidec or ZIEHL-ABEGG fan motors?

Yes. Our quiet long-life BLDC series is designed for backward-compatible replacement of imported fan motors. Send the original motor’s frame diameter, mounting dimensions, voltage and control signal; we will confirm the corresponding model and provide a wiring comparison for the retrofit.

What control and feedback signals are available?

The integrated-driver series accepts 0–6.5 V DC or PWM speed commands and provides FG speed pulse, RD running/lock status and ALARM fault outputs. Hall-sensor versions deliver high starting torque, and FOC versions operate sensor-free with lower noise and torque ripple.

Can the motor be delivered together with your axial, centrifugal or duct fans?

Yes. We manufacture both the motor and fan families, so we can supply complete fan assemblies, motorized impellers, or motor-only units. For fan projects, the motor is matched to the impeller curve so the operating point, speed range and sound level are coordinated in one proposal.

What is your MOQ and normal lead time?

For standard products our MOQ is typically 100 pieces. Customized products have an MOQ based on manufacturing process and material commitment. Standard samples can ship within 3–5 days, and regular production orders typically run 25–30 days after confirmation.

How do you verify motor quality before delivery?

We perform performance testing in motor laboratories, verify wiring and feedback signals on integrated-driver models, and carry out aging tests on representative units. The factory uses ISO9001 quality management, and the BLDC range is covered by CCC and CE marking with RoHS and UL test compliance.
