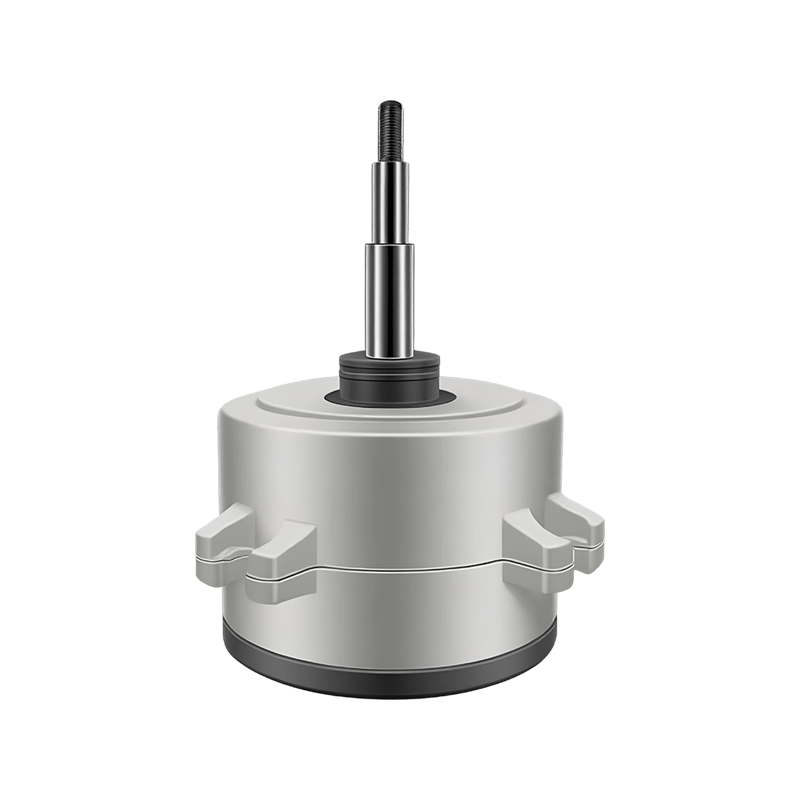

Quiet & Long-Life BLDC Motor with German-Brand Equivalent Performance – Ball Bearing, Class H Insulation, 50,000hrs Service Life, Backward Compatible Replacement for EBM-Papst, Nidec & ZIEHL-ABEGG Fan Motors

Swap technology:
Hall Sensor: 3-channel Hall sensor feedback for rotor position, high starting torque, suitable for low-speed and loaded starting scenarios

Field Oriented Control (FOC):
Estimating rotor position through back electromotive force without sensor failure risk, suitable for high temperature and high vibration working conditions, and with lower operating noise and torque ripple

Feedback signals:
Speed pulse (FG/TACH), running/locking status (RD), fault alarm (ALARM) - all standard outputs are provided for easy monitoring and fault diagnosis by the upper computer.

Multi-machine synchronization:
Supports Master Slave mode, with a single control signal to uniformly adjust the speed of multiple BLDC motors, suitable for array applications such as fan walls and pump groups in parallel.

Inquiry
  • Product Parameters
Type Nominal Voltage(V) Speed (r/min) Torque (N.m) Power Output input [W] Perm,amb.temp. Insulation Class Approvals
M3P-DC108-6XX 310 300-1500 0.13~1.81 20~250 -25~+60 B CCC,CE
  • Product Dimensions
SIGNAL COLOR SPEC
Vs RED DC310V
GND Black GND
Vcc WHITE DC15V
Vsp YELLOW 0-6.5VDC/PWM
FG BLUE 12 Pulse/R
