Energy-Saving Brushless DC Electric Motor with Integrated Driver – IE4/IE5 Equivalent, 30%-70% Less Power vs AC Induction, Ideal for Commercial Fan Upgrades & Green Building Retrofits

Energy-saving return:
In the application of fans, water pumps, and compressors with an average annual operation of 4000+hours, BLDC motors save 30-50% more electricity than AC motors of the same level.
Taking a 1.5kW wind turbine as an example, replacing it with BLDC can save about 2000-3000 kWh of electricity annually. Calculated based on the global average industrial electricity price, the replacement cost can be recovered within 1-2 years.
Compliant with the ErP directive and IE4/IE5 ultra-efficient motor regulations, it is a compliant choice for exporting to the European and American markets.

Inquiry
  • Product Parameters

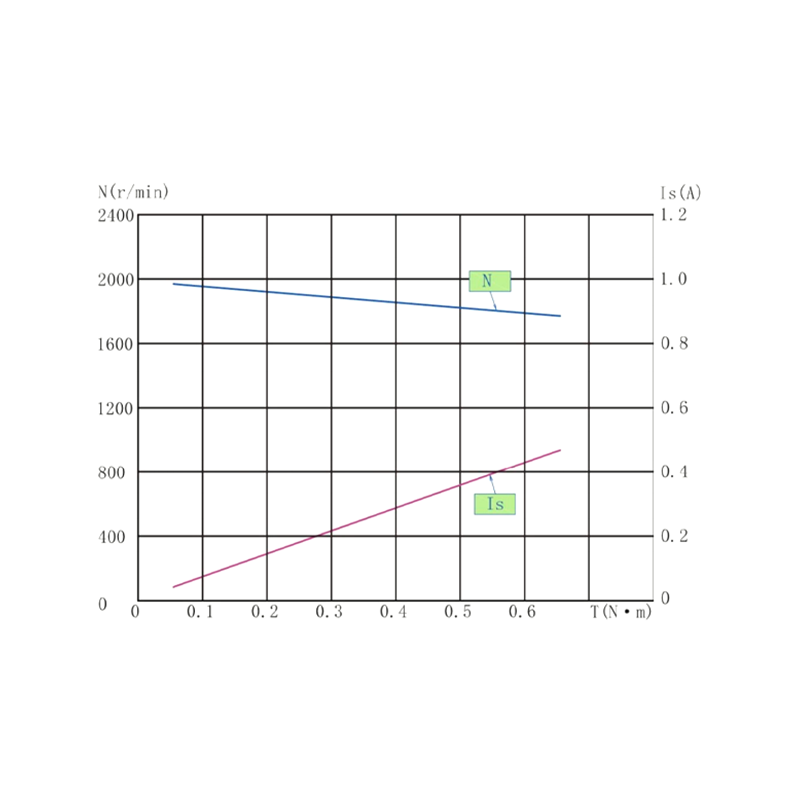

Type Nominal Voltage(V) Speed (r/min) Torque (N.m) Power Output input [W] Perm,amb.temp. Insulation Class Approvals
M3P-DC095-6XX 310 300-2000 0.05~0.63 10~120 -25~+60 B CCC,CE
  • Product Dimensions
SIGNAL COLOR SPEC
Vs RED DC310V
GND Black GND
Vcc WHITE DC15V
Vsp YELLOW 0-6.5VDC/PWM
FG BLUE 12 Pulse/R
