Home / Products / Axial Fan / EC Axial Fan / High-Efficiency EC Axial Fan with External Rotor Motor - Ideal Energy-Saving Replacement for Traditional AC Cooling Fans

EC Axial Fan

Hangzhou Beron Motor Co., Ltd.

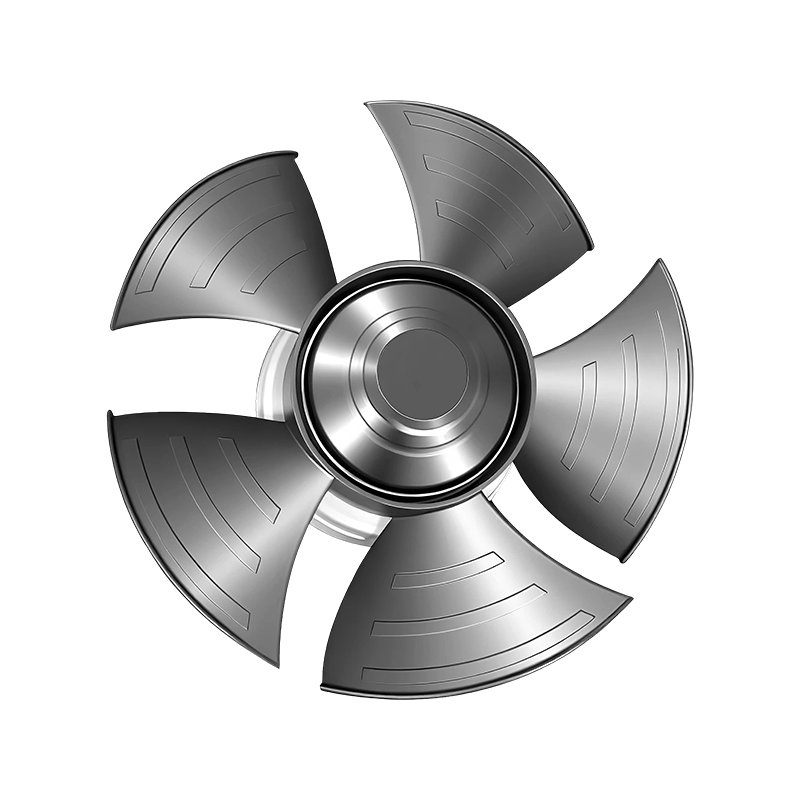

High-Efficiency EC Axial Fan with External Rotor Motor - Ideal Energy-Saving Replacement for Traditional AC Cooling Fans

Airflow enters and exits parallel to the fan's axis of rotation. Rotating blades generate lift to propel the air; this type is primarily used in applications requiring low static pressure and high airflow volume.

Product Structure
External rotor motor:
The motor rotor connects directly to the impeller, resulting in a compact design.
Impeller assembly:
Blades optimized based on aerodynamic design.
Mounting and protection:
Includes square air guide frames, circular wire guards, or cylindrical flanges.

Inquiry
  • Product Parameters

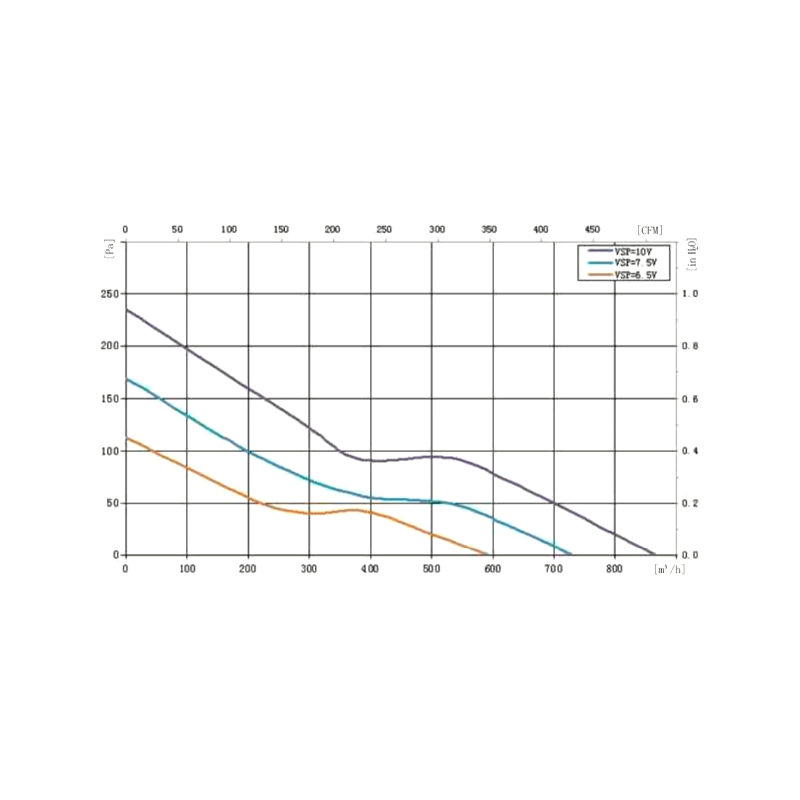

Type Curve Nominal voltage [VAC] Frequency [Hz] Speed [rpm] Power input [W] Current draw [A] Sound pressure level [dB] Perm. amb. temp. [℃]
BA3P200-EC072-**** 220 50/60 2600 80 0.6 54 -25~+60

  • Product Dimensions
SIGNAL COLOR SPEC
L BROWN AC220V 50/60Hz
N BLUE AC220V 50/60Hz
PE YELLOW/GREEN EARTH
Vcc RED DC10V Output
Vsp YELLOW 0–10VDC/PWM
GND BLUE GND
FG WHITE 1 Pulse/R
