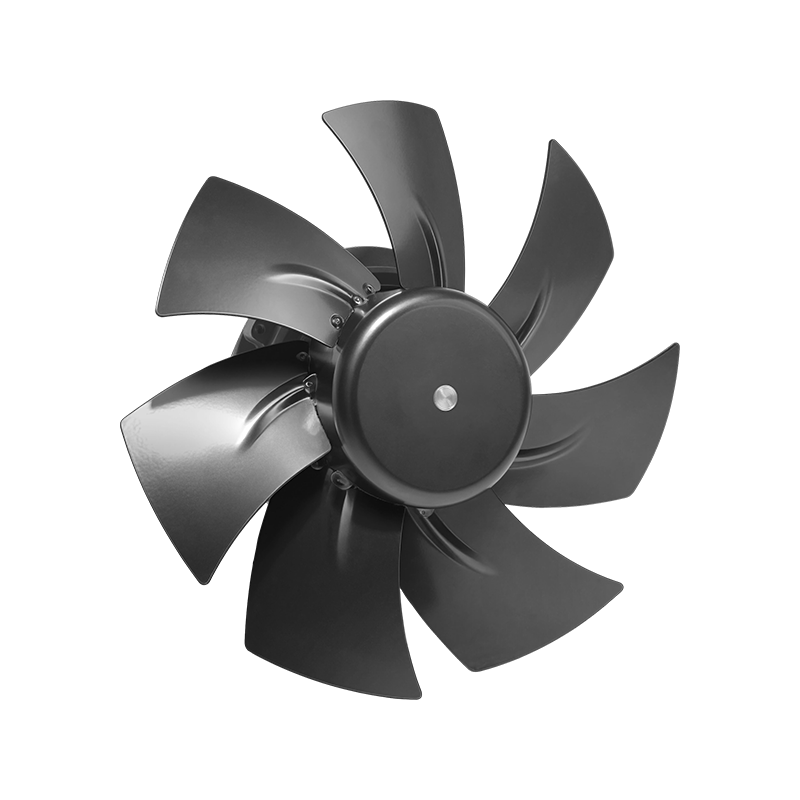

Smart EC Axial Flow Fan featuring Stepless Speed Regulation - Premium Cooling Solution for Sustainable Industrial Ventilation

Design Highlights
Aerodynamic Design:
Wing-profile blade design minimizes air turbulence.
Structural Highlights:
Integrated external-rotor structure effectively reduces mechanical transmission losses and minimizes installation depth.
Low-Noise Design:
Impeller undergoes dual-stage dynamic balancing, ensuring smooth operation and noise levels below industry standards.

Inquiry
  • Product Parameters

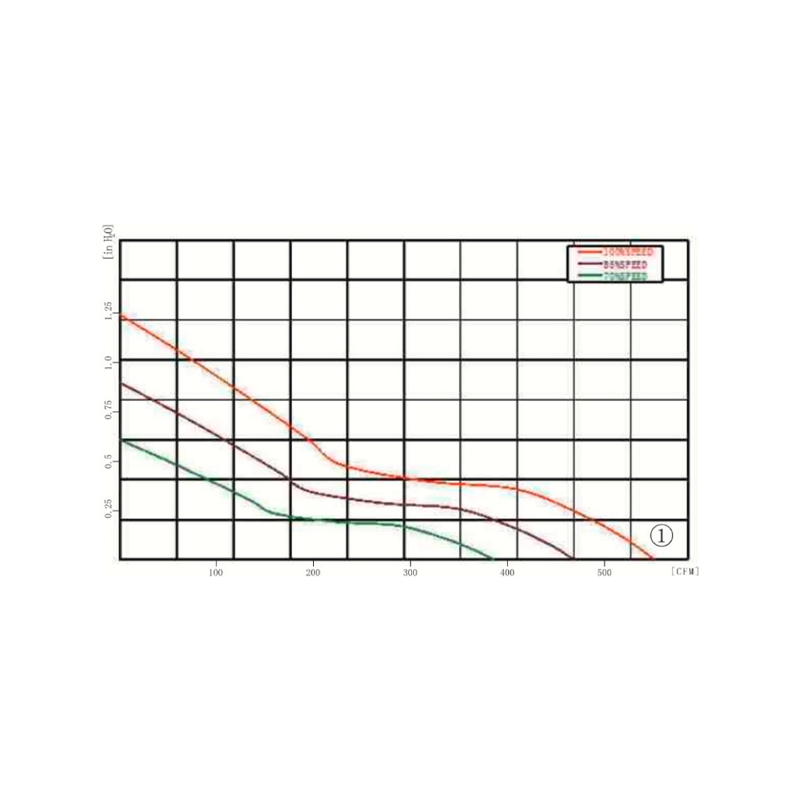

Type Curve Nominal voltage [VAC] Frequency [Hz] Speed [rpm] Power input [W] Current draw [A] Sound pressure level [dB] Perm. amb. temp. [℃]
BA3P200-EC092-**** 220 50/60 3000 55 0.4 60 -25~+60
  • Product Dimensions
SIGNAL COLOR SPEC
L BROWN AC220V 50/60Hz
N BLUE AC220V 50/60Hz
PE YELLOW/GREEN EARTH
Vcc RED DC10V Output
Vsp YELLOW 0–10VDC/PWM
GND BLUE GND
FG WHITE 1 Pulse/R
