Home / Products / Centrifugal Fan / DC Centrifugal Fan / High-Static-Pressure DC Centrifugal Blower with 0-10V / PWM Speed Regulation – Industrial-Grade Compact Fan for Medical Devices, 3D Printers & Electronics Cooling

DC Centrifugal Fan

Hangzhou Beron Motor Co., Ltd.

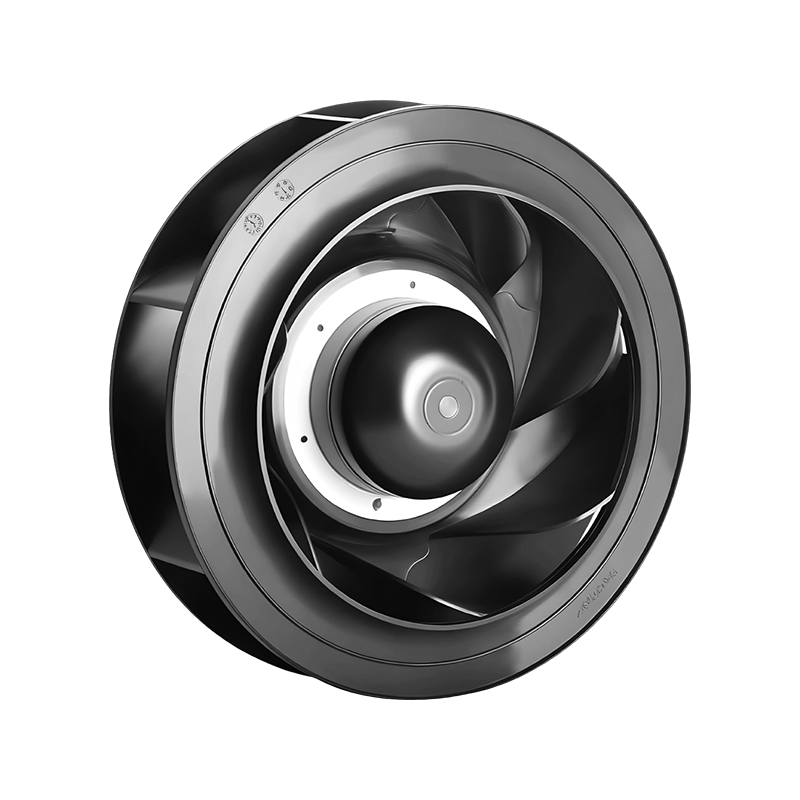

High-Static-Pressure DC Centrifugal Blower with 0-10V / PWM Speed Regulation – Industrial-Grade Compact Fan for Medical Devices, 3D Printers & Electronics Cooling

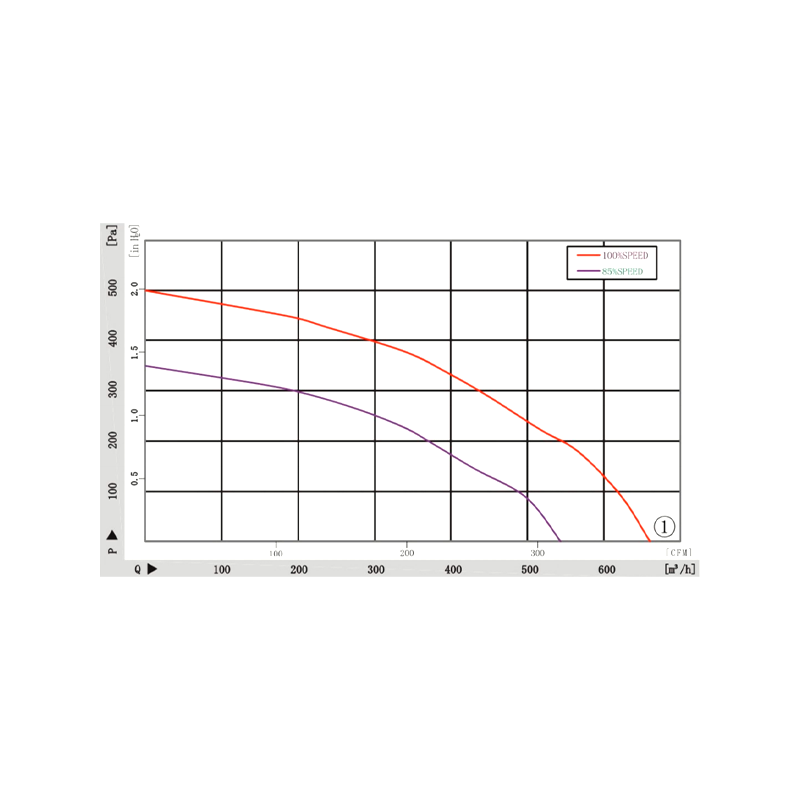

The DC centrifugal fan adopts a backward-curved impeller design, and the air volume-static pressure curve shows a stable downward trend without a stall-free zone, running smoothly throughout the entire working range. When adjusting speed, the air volume is proportional to the speed, the static pressure is proportional to the square of the speed, and the power is proportional to the cube of the speed. Following the classic Fan Affinity Laws, the energy-saving effect of speed adjustment is significant.

Inquiry
  • Product Parameters
Type Curve Nominal voltage [DC] Speed [rpm] Power input [W] Current draw  [A] Sound pressure level [dB] Perm. amb. temp. [℃]
B3P175-DC072-002 310 3650 82 0.26 74 -25~+60
  • Product Dimensions
SIGNAL COLOR SPEC
Vs RED DC310V
GND Black GND
Vcc WHITE DC15V
Vsp YELLOW 0-10VDC/PWM
TACH BLUE 12 Pulse/R
