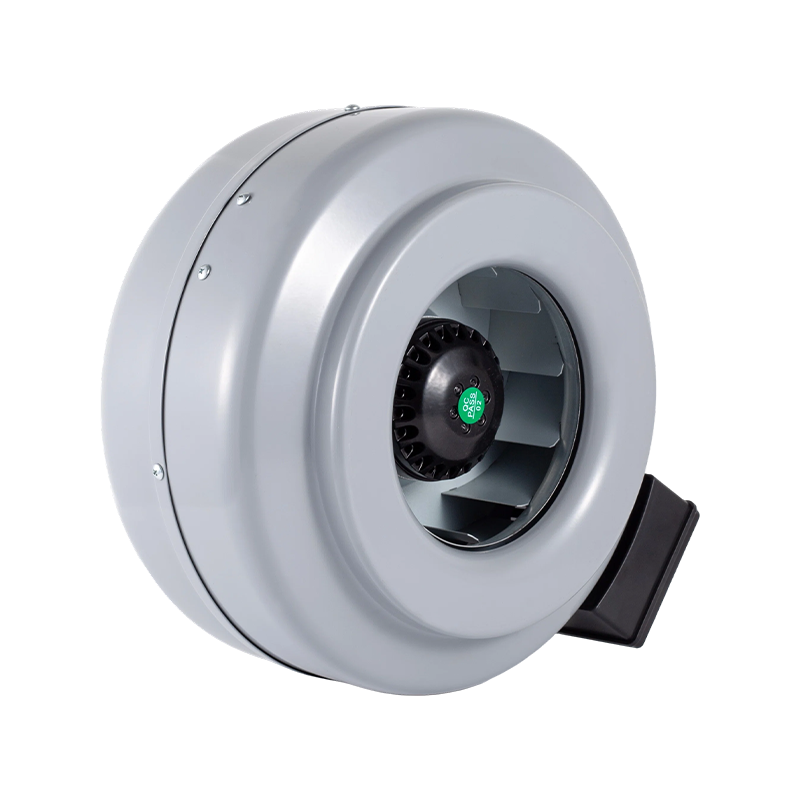

High-Performance AC Inline Duct Fan 4" 6" 8" 10" 12" – Mixed-Flow Design, High Airflow & Static Pressure for HVAC Ducting & Central Ventilation Systems

Mixed flow design and air volume static pressure balance
The AC Duct Fan adopts a mixed flow impeller design, which combines the high air volume characteristics of axial flow with a certain static pressure capacity of centrifugation. It is the best solution for embedding circular ducts to achieve long-distance air supply and exhaust.

Covering standard pipe diameters ranging from 4" (100mm) to 12" (315mm), with an air volume range of 150-2500 m ³/h. The mixed flow impeller provides high air volume when there is no pipeline free air outlet, and overcomes the resistance along the way with a static pressure of 150-500 Pa when connected to long pipelines or bends, avoiding a cliff-like drop in air volume. This feature makes it equally capable in both residential exhaust and commercial pipeline pressurization scenarios - pure axial flow fans perform poorly in pipelines, pure centrifugal fans are too large and costly, and mixed flow pipeline fans fill the gap in between

Inquiry
PREV：AC Inline Duct Booster Fan with Variable Speed Controller – Galvanized Steel Housing, Balanced Aluminum Impeller for Grow Tent, Hydroponics & Indoor Gardening Exhaust NEXT：No next article
  • Product Parameters

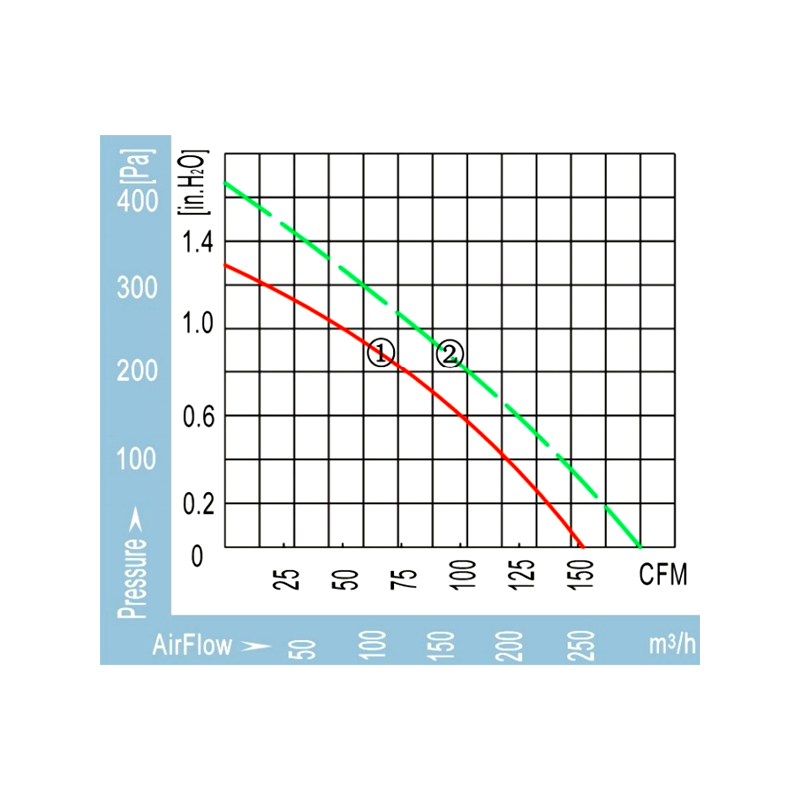

Type Voltage(V) Frequency (Hz) Current (A) Input Power (W) Speed (RPM) Capacitor (μF) Air Flow (m³/h/CFM) Noise (dB(A)) Operating Temperature (Min/Max(℃)) Curve No (#) Approvals
YWFP2E-100-AA 115/120 60 0.73 88 2580 8 300/176 61 -30~+60 ② CCC,CE
YWFP2E-100-AA 220/230 50 0.32 66 2300 3 260/153 52 -30~+60 ① CCC,CE
YWFP2E-100-AA 220/230 60 0.4 86 2390 3 300/176 61 -30~+60 ② CCC, CE

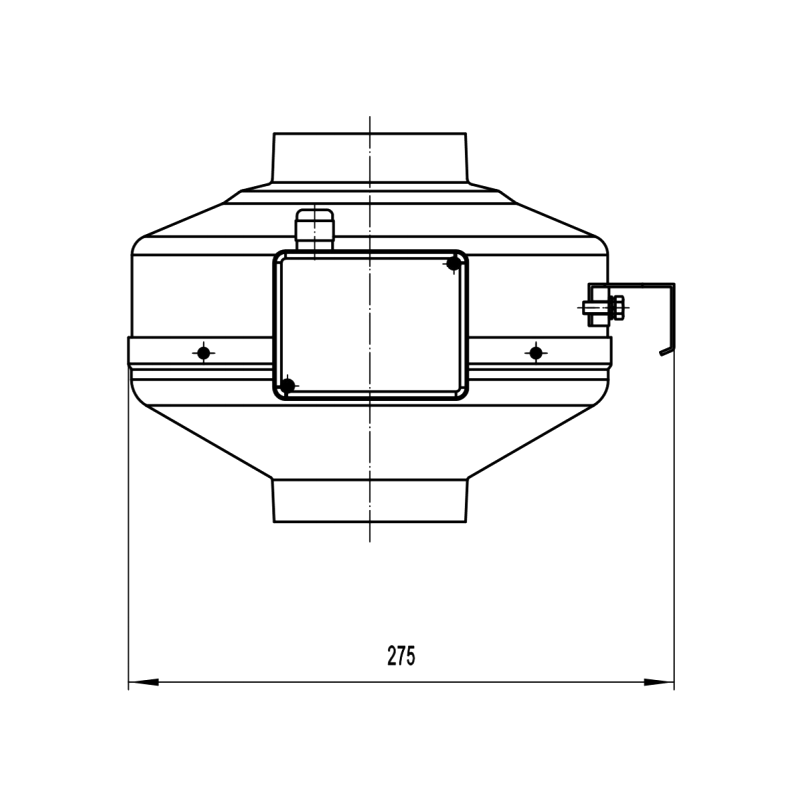

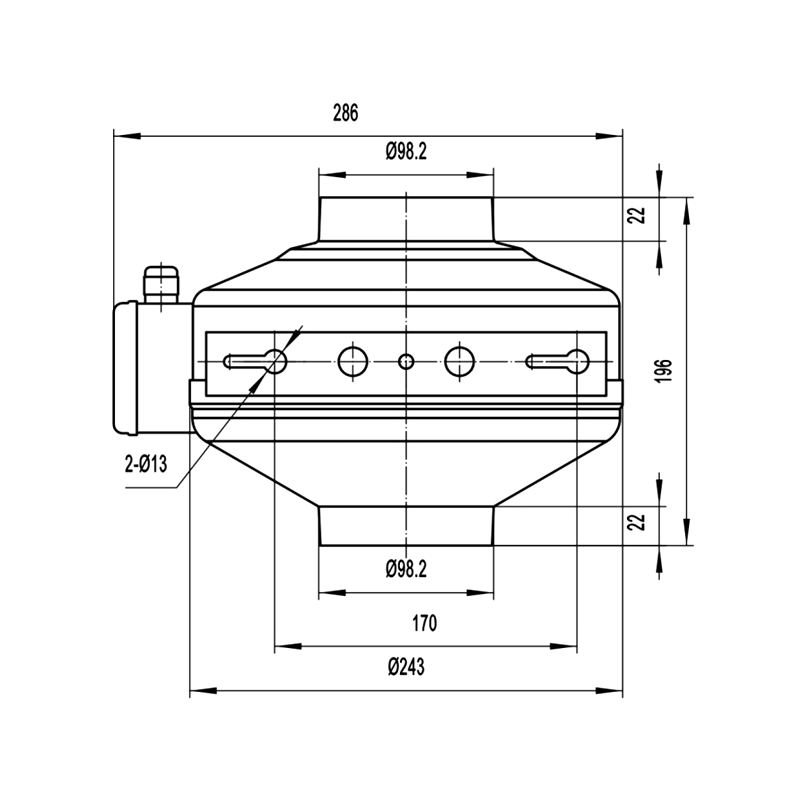

  • Product Dimensions
