Home / Products / Axial Fan / AC Axial Fan / AC Axial Fan with 5 Silver Aluminum Blades and External Rotor Motor - High-Performance Ventilation Cooling Fan for Condenser and Industrial Cooling Systems

AC Axial Fan

Hangzhou Beron Motor Co., Ltd.

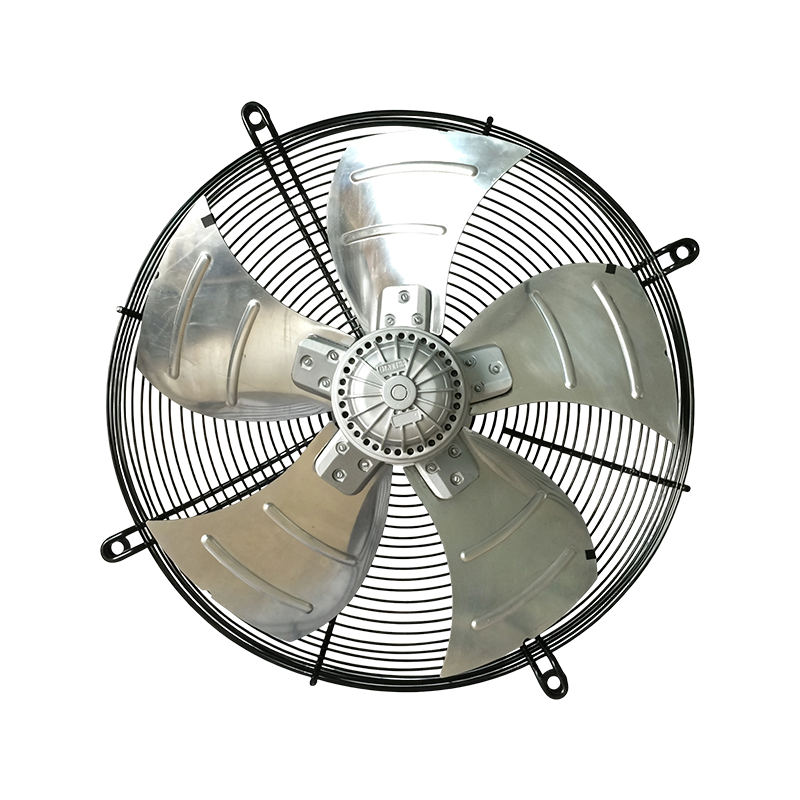

AC Axial Fan with 5 Silver Aluminum Blades and External Rotor Motor - High-Performance Ventilation Cooling Fan for Condenser and Industrial Cooling Systems

Material Specifications
Casing/Frame Material:
High-strength cold-rolled steel sheet, die-cast aluminum alloy, or lightweight, rust-resistant aluminum.
Impeller Material:
High-quality aluminum alloy, carbon steel (painted finish), or reinforced engineering plastic (corrosion-resistant).
Motor Material and Class:
Features pure copper windings; insulation class is F (155°C) or H (180°C).

Inquiry
  • Product Parameters

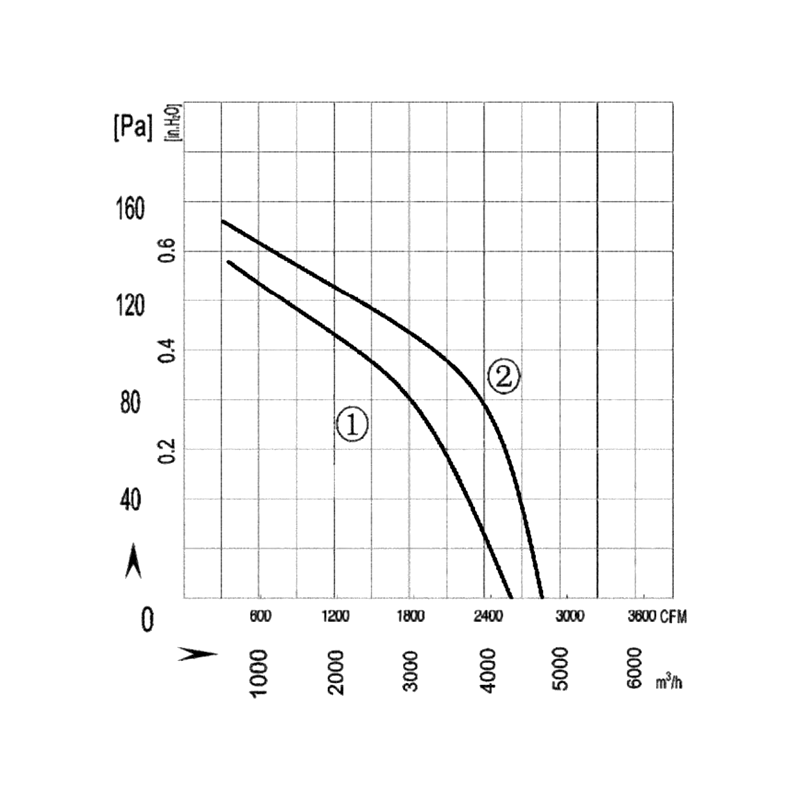

Type Voltage(V) Frequency (Hz) Current (A) Input Power (W) Speed (RPM) Capacitor (μF) Air Flow (m³/h/CFM) Noise (dB(A)) Operating Temperature (Min/Max(℃)) Curve No (#) Approvals
MTA4E-400S-5DAA 220/230 50 1.1 225 1380 6 4300/2580 58 -0.5 CCC, CE
MTA4E-400S-5DAA 220/230 60 1.15 310 1550 6 4750/2880 60 -0.5 CCC, CE
MTA4D-400S-5DAA 380/400 50 0.52 225 1380 / 4300/2580 58 -0.5 CCC, CE
MTA4D-400S-5DAA 380/400 60 0.6 310 1550 / 4750/2880 60 -0.5 CCC, CE

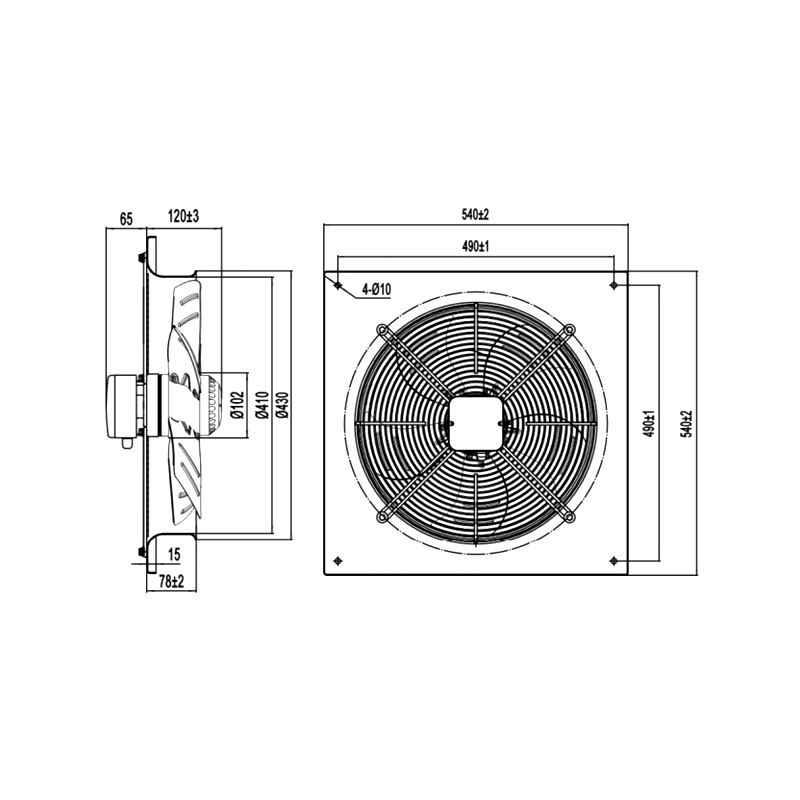

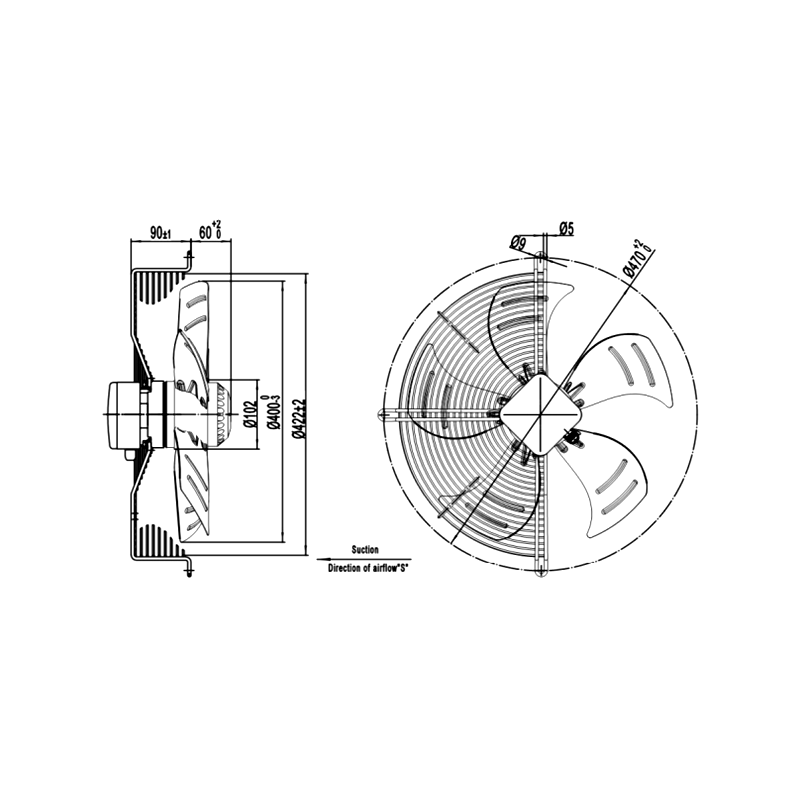

  • Product Dimensions
