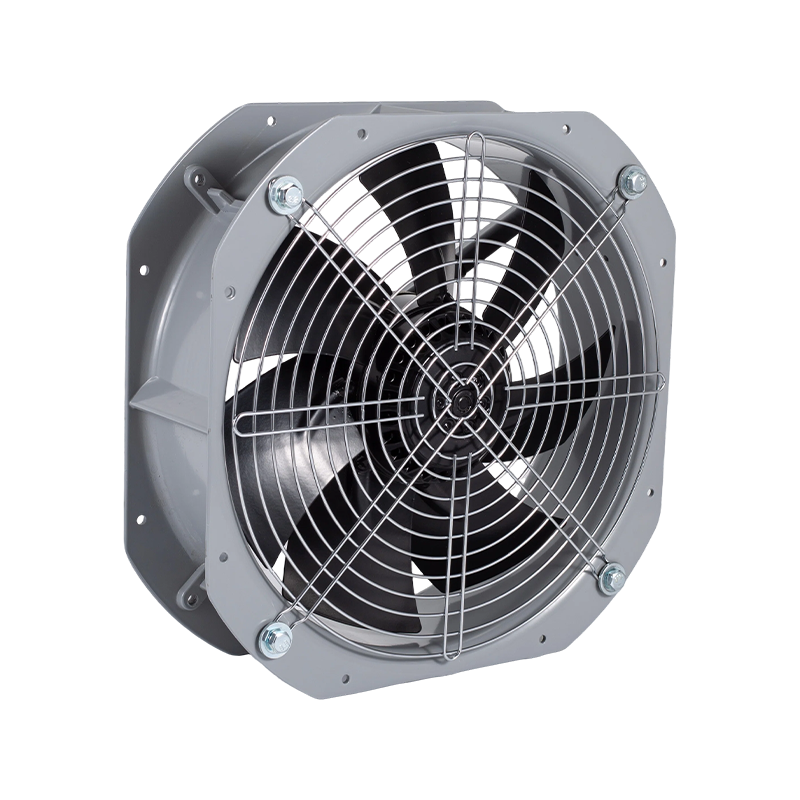

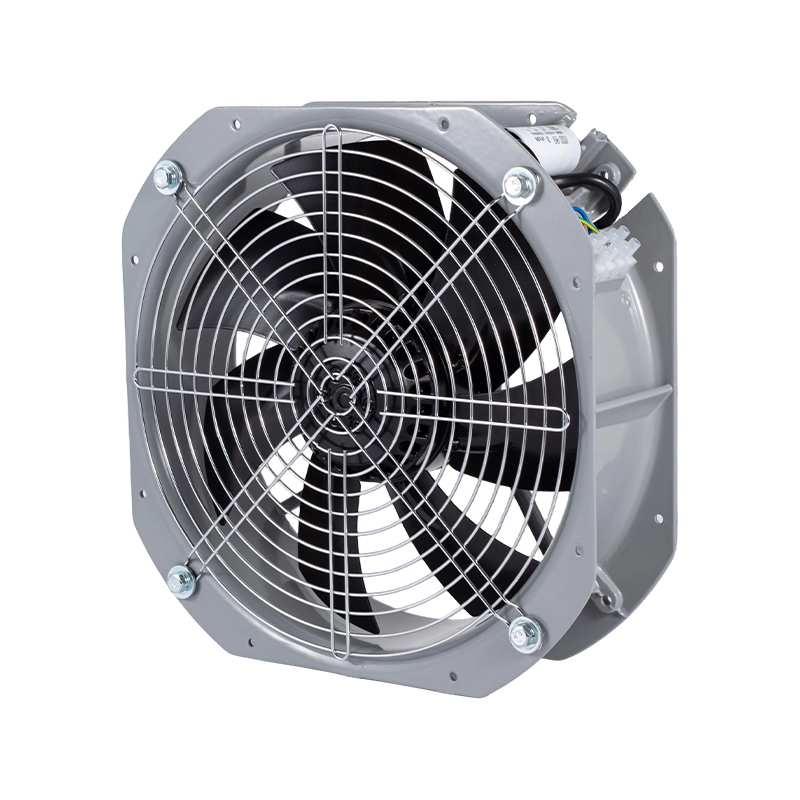

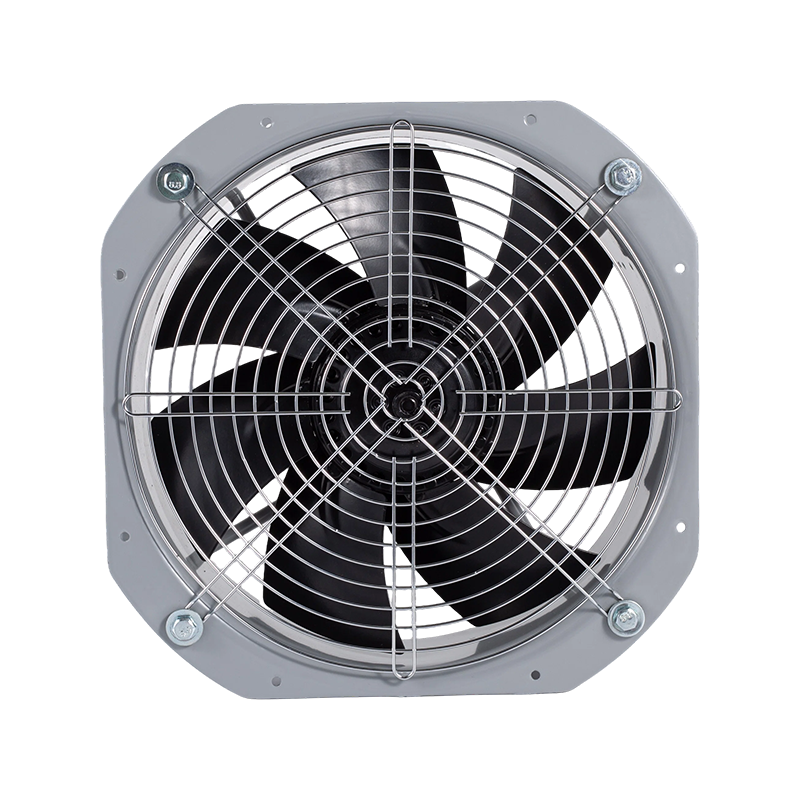

200mm High-Performance AC Axial Flow Fan with External Rotor Motor - 7-Blade Compact Square Panel Mount Industrial Fan

In the field of electronic device cooling, space constraints are often more urgent than air volume requirements. The miniaturized AC axial flow fan (80 mm- 172 mm impeller diameter) is designed specifically to solve the contradiction of "obtaining sufficient wind pressure in a limited space." The smaller the impeller diameter, the lower the static pressure that can be generated by a single stage

Inquiry
PREV：450mm Heavy-Duty AC Tubular Axial Flow Fan with Mesh Guard High-Performance Pipe Mounted Ventilation Fan for Industrial HVAC NEXT：5-Blade Square AC Axial Flow Fan - Panel Mount Ventilation Fan for Industrial Heat Dissipation and Air Exchange
  • Product Parameters

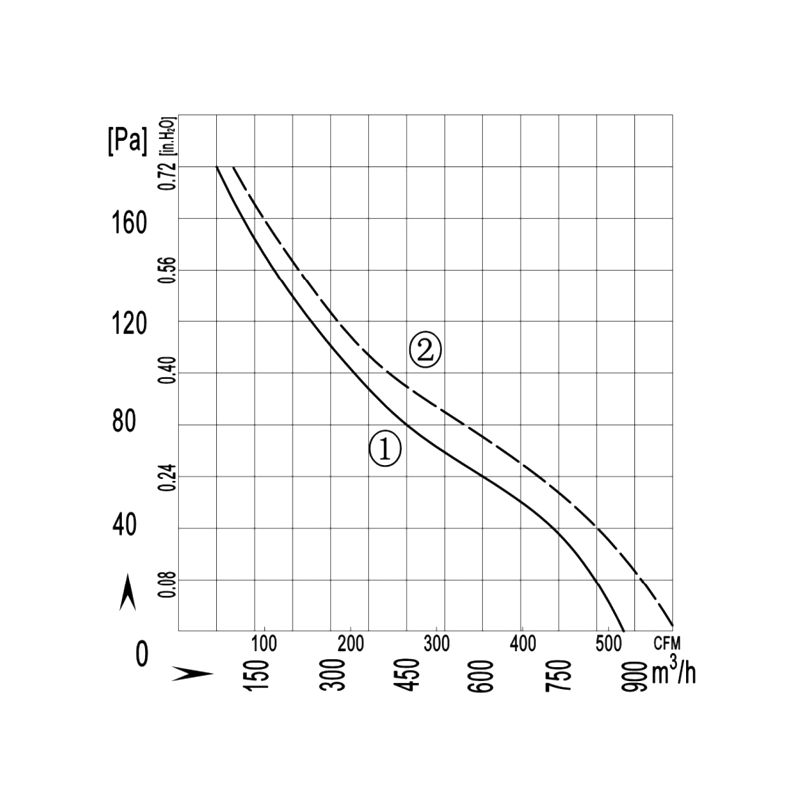

Type Voltage(V) Frequency (Hz) Current (A) Input Power (W) Speed (RPM) Capacitor (μF) Air Flow (m³/h/CFM) Noise (dB(A)) Operating Temperature (Min/Max(℃)) Curve No (#) Approvals
YWFK2E-200S-7 220/230 50 0.3 60 2550 2 880/518 58 -0.5 ① CCC, CE
YWFK2E-200S-7 220/230 60 0.34 75 2800 980/576 60 -0.5 ② CCC, CE
YWFK2D-200S-7 380/400 50 0.21 65 2300 / 880/518 58 -0.5 ① CCC, CE
YWFK2D-200S-7 380/400 60 0.24 80 2600 980/576 60 -0.5 ② CCC, CE

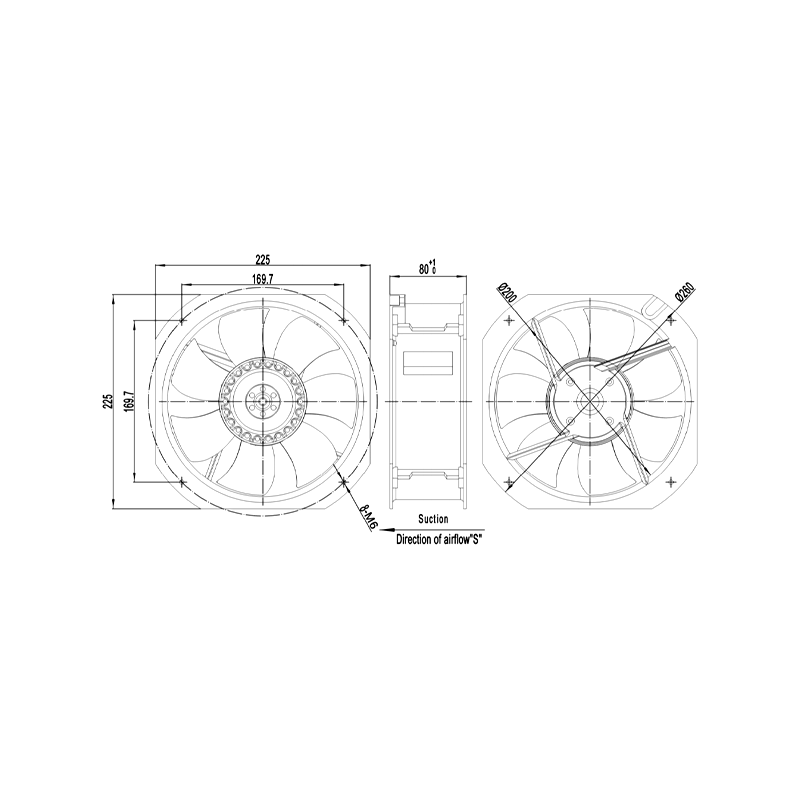

  • Product Dimensions
