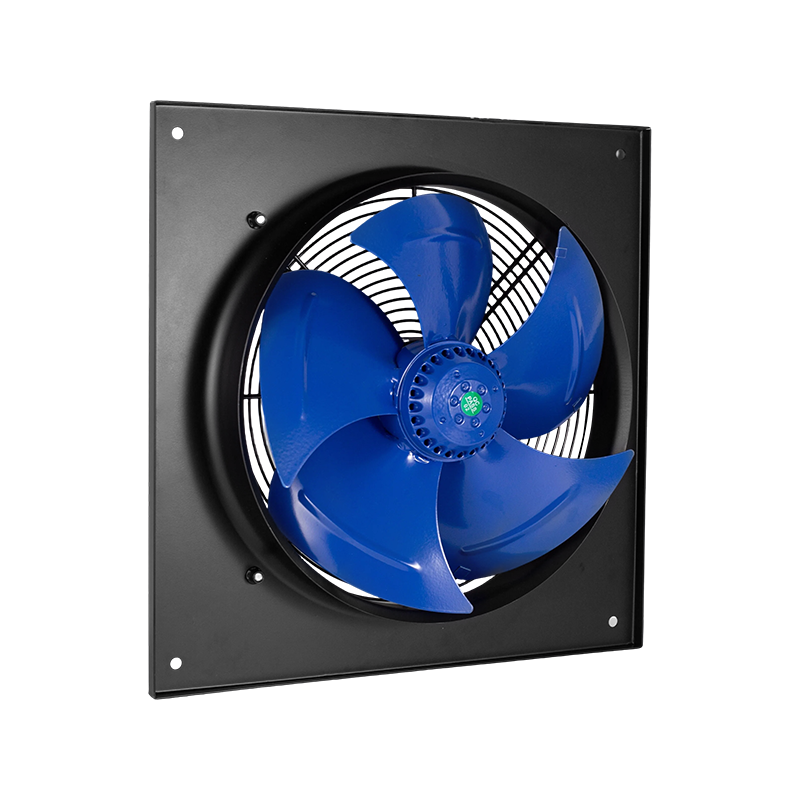

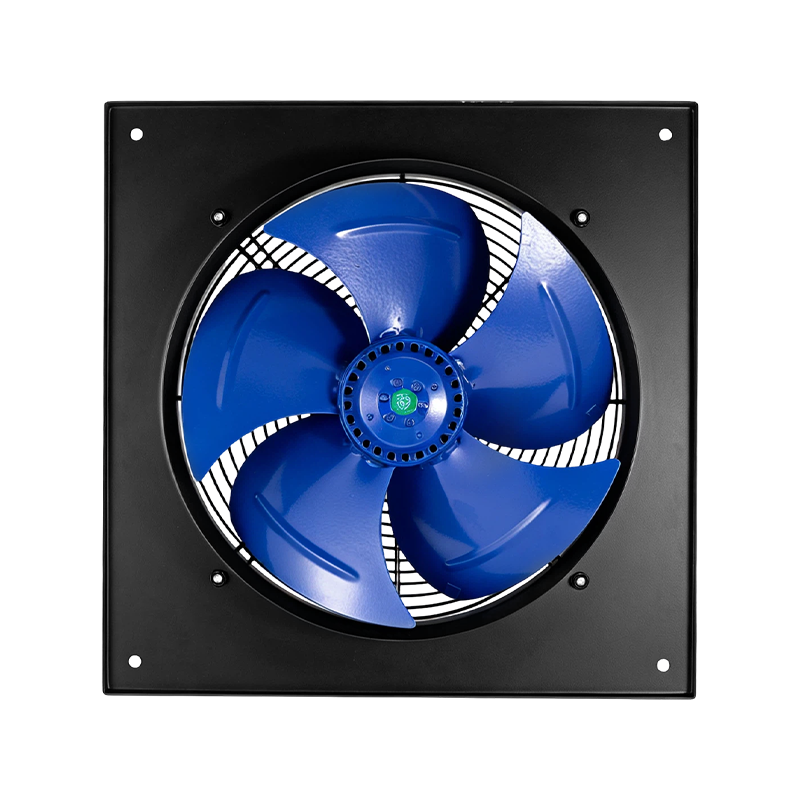

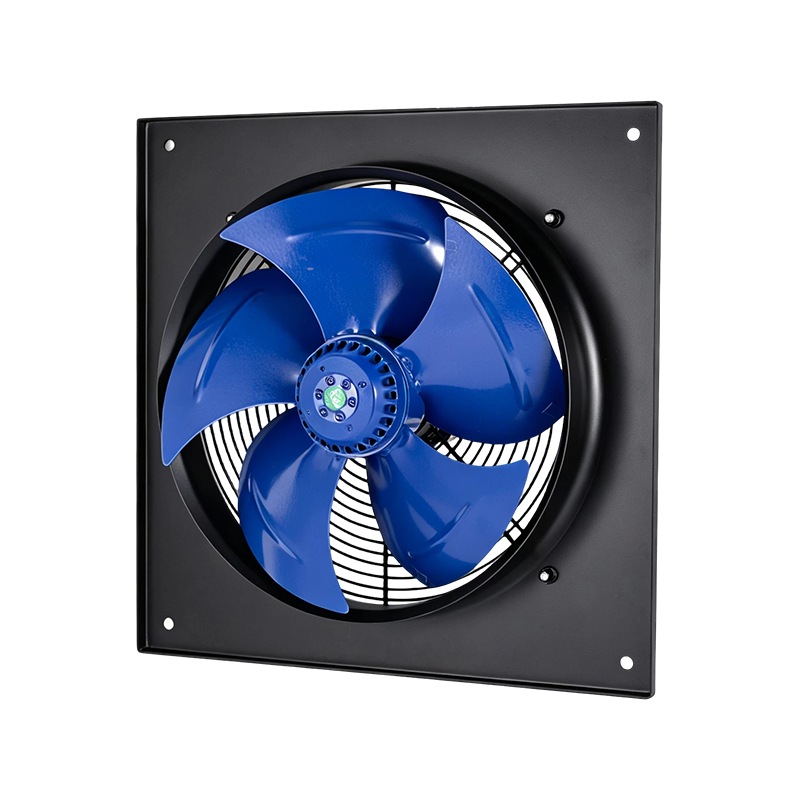

5-Blade Square AC Axial Flow Fan - Panel Mount Ventilation Fan for Industrial Heat Dissipation and Air Exchange

Panel Mount/Square Frame Axial Fan is a compact ventilation device that integrates square mounting panels. It is designed specifically for embedding into cabinet wall panels or equipment enclosures, achieving a three-step installation process of "opening → embedding → fixing"

Q: Which scenarios are suitable?
Factory workshop ventilation and cooling, negative pressure exhaust for animal husbandry, greenhouse temperature and humidity control, distribution cabinet/electrical control cabinet heat dissipation, cold storage condenser and evaporator air supply. Covering impeller diameters of 200 mm-800 mm and air flow rates of 800-25000 m ³/h, it is the most cost-effective solution in low-pressure high flow ventilation.
Q: How long can it run continuously?
Adopting international brand double ball bearings, L10 life ≥ 40000 hours @ 40 ° C; F-class insulation (155 ° C)+VPI vacuum impregnation process, insulation resistance ≥ 100 M Ω; 72-hour accelerated life test (50 ° C environment+110% voltage) is randomly selected for each batch to verify long-term reliability.

Inquiry
PREV：200mm High-Performance AC Axial Flow Fan with External Rotor Motor - 7-Blade Compact Square Panel Mount Industrial Fan NEXT：800mm Industrial AC Axial Fan with 7 Metal Blades and Protective Grill - High Airflow Ventilation Cooling Fan
  • Product Parameters

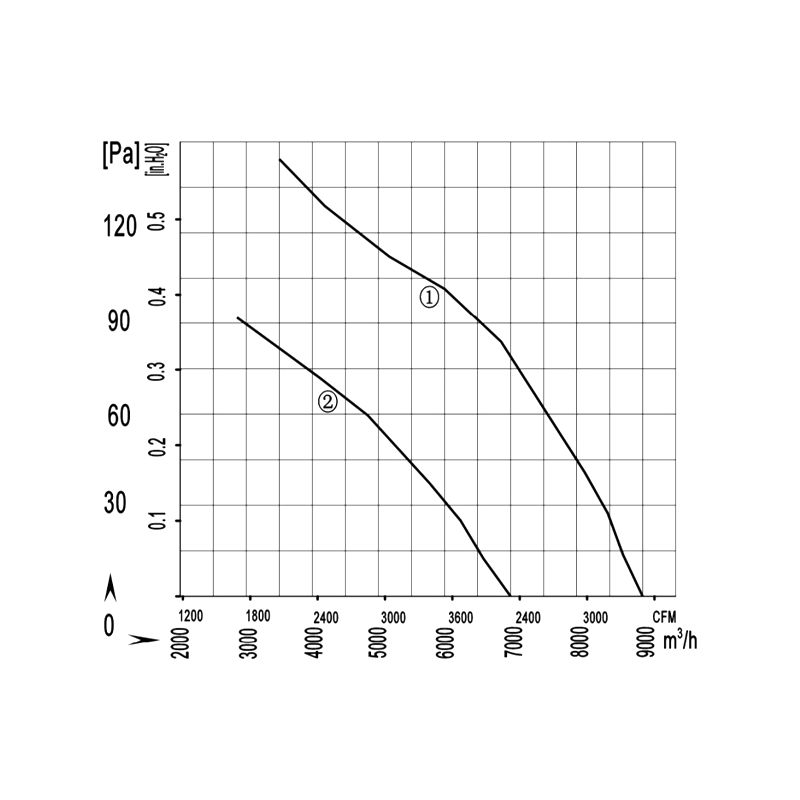

Type Voltage(V) Frequency (Hz) Current (A) Input Power (W) Speed (RPM) Capacitor (μF) Air Flow (m³/h/CFM) Noise (dB(A)) Operating Temperature (Min/Max(℃)) Curve No (#) Approvals
YWF4E-500S(137-70)-5DAA 220/230 50 3.8 700 1320 16 9000/5300 80 -0.5 ① CCC, CE
YWF4D-500S(137-70)-5DAA 380/400 50 1.5 700 1350 / 9000/5300 80 -0.5 ① CCC, CE
YWF4D-500S(137-70)-5DAA 380/400 50 0.9 500 1000 / 7000/4117 70 -0.5 ② CCC, CE

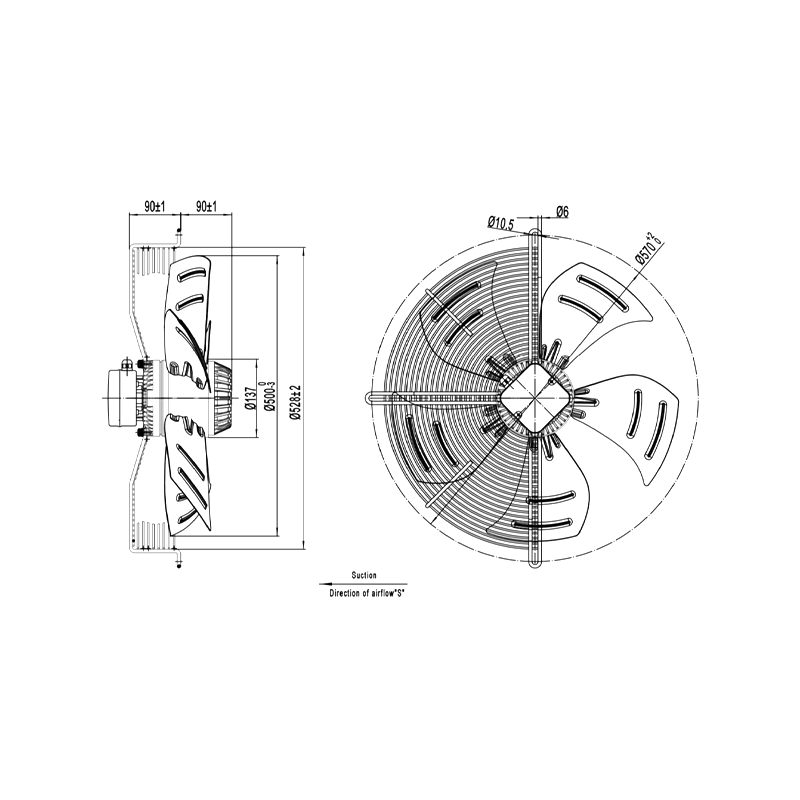

  • Product Dimensions
