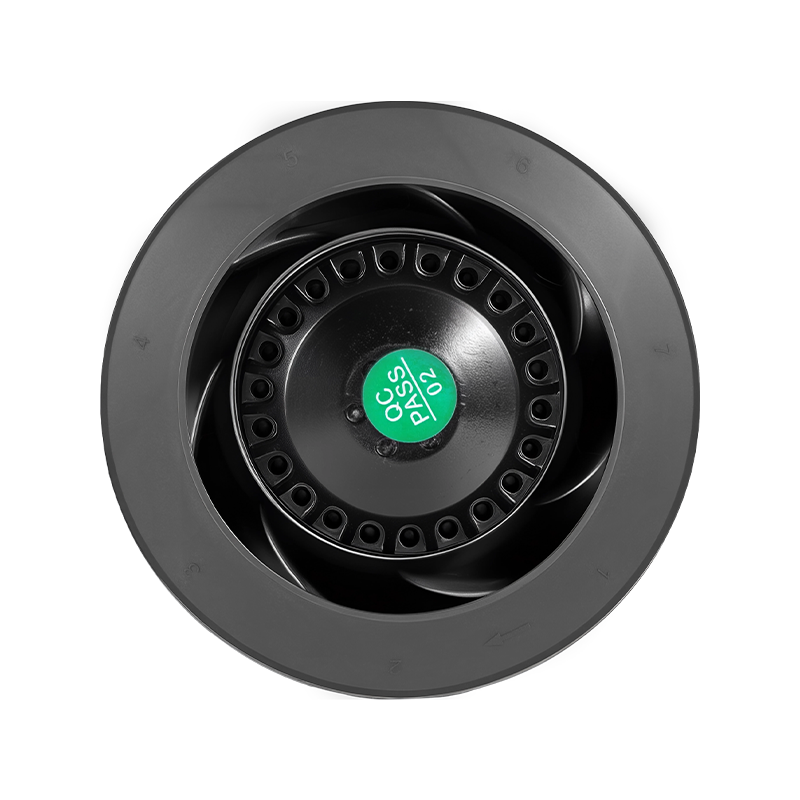

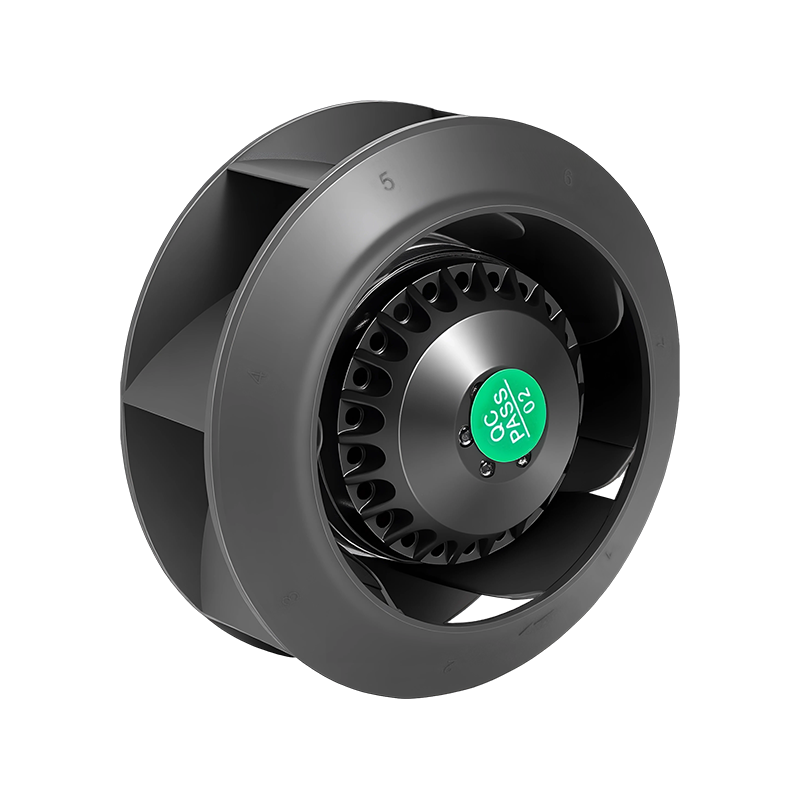

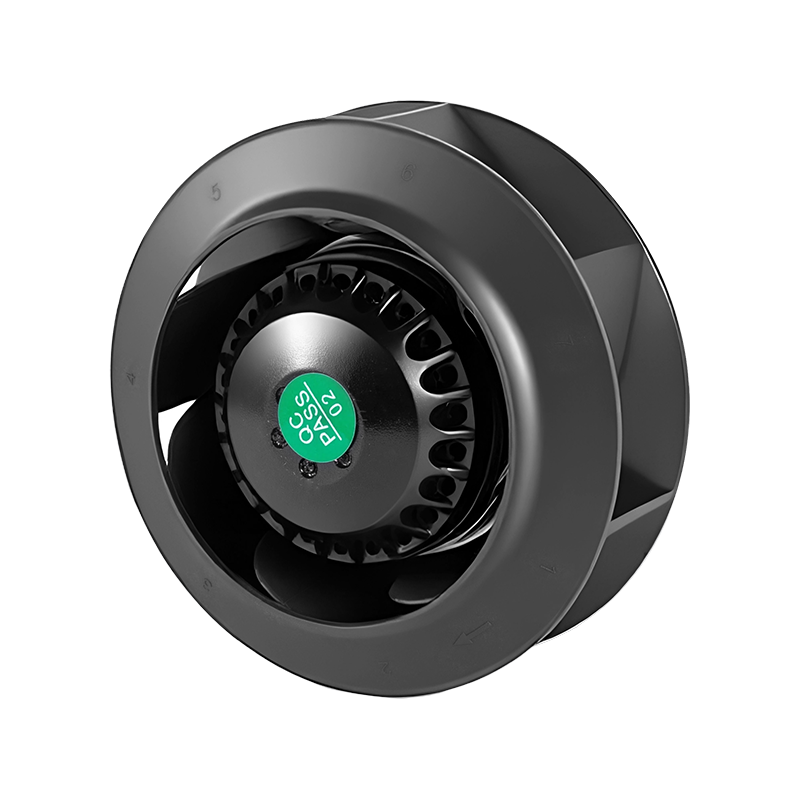

Professional AC Centrifugal Fan Series: High Volume & High Pressure Blowers for Roof Ventilation and Air Purification Units

Installation & Protection
Installation Methods: Supports plug-in, bracket, or flange mounting; offers versatile installation orientations.
Protection Performance: Protection rating of IP44 or IP54, effectively preventing dust ingress and water splashes.
Safety Features: Includes soft-start, locked-rotor protection, and thermal and overcurrent protection.

Q: When should I choose a centrifugal fan instead of an axial fan?
When there are resistance elements such as long pipelines (>30m), multiple bends, HEPA filters, or dust removal filter cartridges in the system, the axial flow fan cannot push the airflow due to insufficient static pressure. The AC centrifugal fan outputs a high static pressure of 500-2500 Pa, which is the correct choice for penetrating pipeline resistance.
Q: What are the benefits of a rear curved impeller?
The PQ curve of the rear curved impeller operates stably without any stall zone throughout the entire working range; The leaves themselves have self-cleaning properties, making it difficult for dust to adhere; Under high static pressure conditions, the efficiency is 10-15% higher than that of the forward impeller. The impellers of BERON-MOTOR centrifugal fans are all subjected to G2.5 dynamic balancing and aluminum alloy ADC12 die-casting or galvanized steel plate stamping, with no risk of welding deformation.

Inquiry
PREV：Durable Metal AC Backward Centrifugal Fan for Large-Scale Filtering & FFU - High-Performance Air Exchange in Industrial Environments NEXT：Low-Noise AC Backward Centrifugal Fan for Precision Ventilating Units - Large Capacity Airflow with Minimal Sound Emission
  • Product Parameters

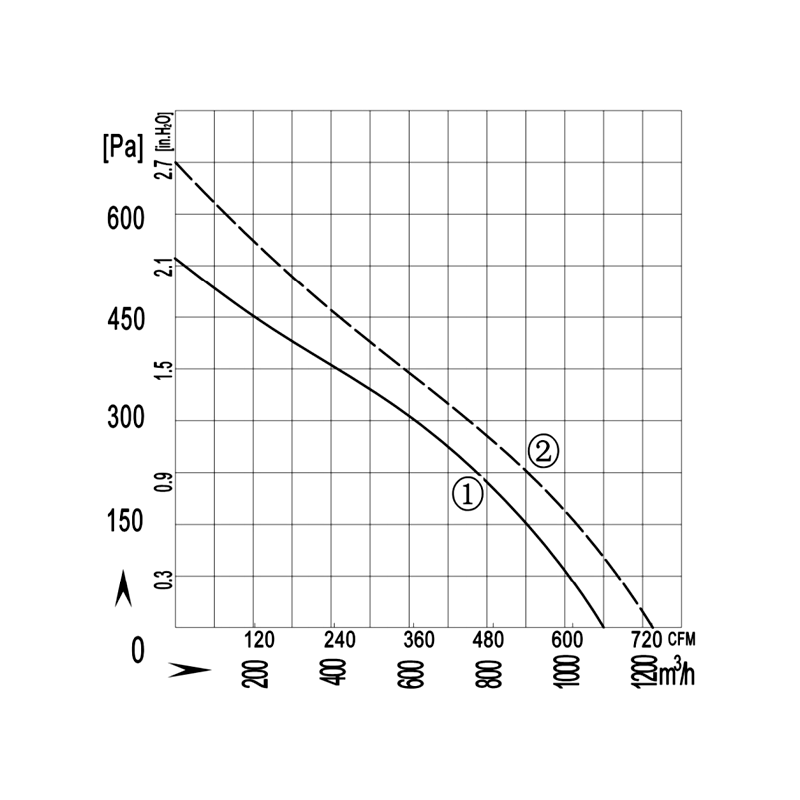

Type Voltage(V) Frequency (Hz) Current (A) Input Power (W) Speed (RPM) Capacitor (μF) Air Flow (m³/h/CFM) Noise (dB(A)) Operating Temperature (Min/Max(℃)) Curve No (#) Approvals
YWFH2E-225-089P-BA 220/230 50 0.6 135 2600 4 1100/647 70 -30~+60 ① CCC,CE
YWFH2E-225-089P-BA 220/230 60 0.9 180 2900 4 1250/735 72 -30~+60 ② CCC,CE
YWFH2D-225-089P-BA 380/400 50 0.6 135 2600 / 1100/647 70 -30~+60 ① CCC,CE
YWFH2D-225-089P-BA 380/400 60 0.9 180 2900 / 1250/735 72 -30~+60 ② CCC, CE

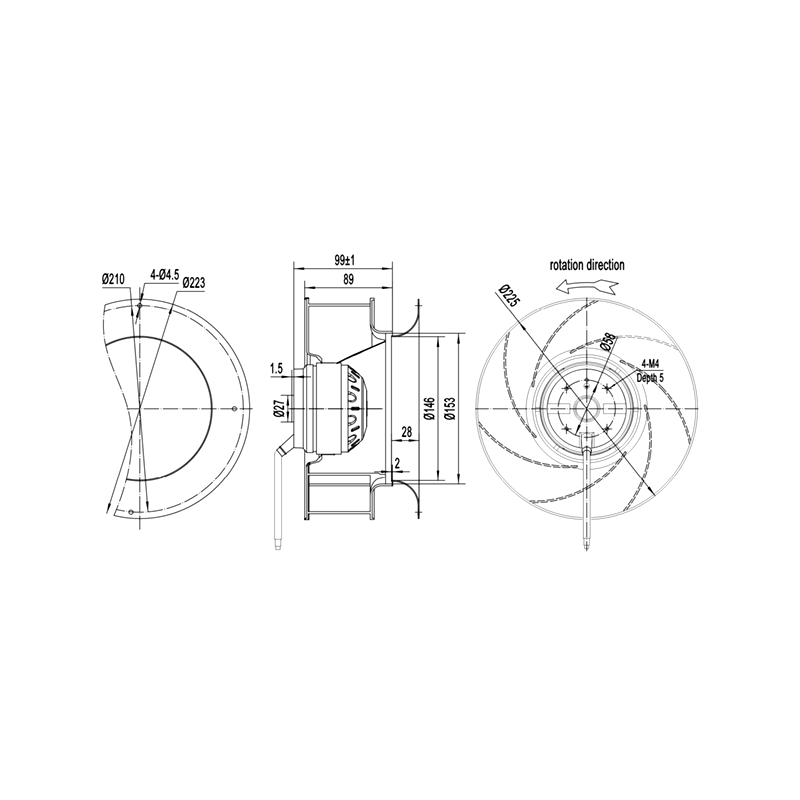

  • Product Dimensions
