Home / Products / Duct Fan / AC Duct Fan / High-Static-Pressure AC Centrifugal Duct Fan – Backward-Curved Impeller, IP44 Rated, Long-Duct Compatible for Commercial Kitchen, Warehouse & Factory Exhaust

AC Duct Fan

  • High-Static-Pressure AC Centrifugal Duct Fan – Backward-Curved Impeller, IP44 Rated, Long-Duct Compatible for Commercial Kitchen, Warehouse & Factory Exhaust
Hangzhou Beron Motor Co., Ltd.

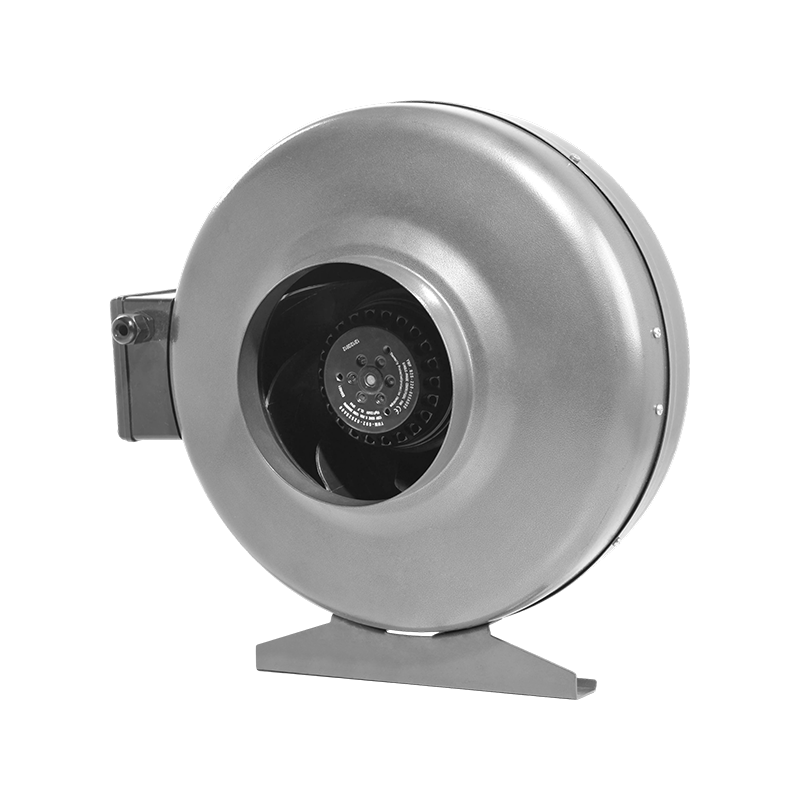

High-Static-Pressure AC Centrifugal Duct Fan – Backward-Curved Impeller, IP44 Rated, Long-Duct Compatible for Commercial Kitchen, Warehouse & Factory Exhaust

The design concept of the AC Duct Fan is "unboxing and ready to use, no need for modification".

Easy installation:
Both ends come with flange joints, which can be directly inserted into standard round air ducts (corresponding to the sizes of 4 "/6"/8 "/10"/12 "air ducts) without the need for adapters.
Standard multifunctional installation bracket, supporting horizontal lifting, wall-mounted side installation, and vertical installation.
Comes with a built-in junction box and power cord, plug and play.
The installation time for a single unit is 10-15 minutes, making both new and old pipe renovations equally effortless.

Speed control selection:
Standard single-speed operation, ready-to-use wiring.
Optional external speed regulator (knob/shift) for manual switching between high and low speeds.
Optional temperature/humidity control linkage module, automatically starts and stops according to environmental conditions.

Certification and market adaptation:
CE (LVD+EMC), RoHS certification, meeting EU market access requirements.
110V/60Hz and 220V/50Hz dual voltage versions are available, covering markets in North America, Europe, and Asia
We can provide OEM brand labels and customized packaging according to customer needs.

Inquiry
PREV：Durable AC Mixed-Flow Inline Fan – 100% Copper Motor, Class F Insulation, Continuous-Run Rated for Fresh Air Systems, HVAC Retrofit & Underground Ventilation NEXT：Ultra-Quiet AC Inline Duct Exhaust Fan – Low-Noise 28dB, Thermal Overload Protection, Compact Flange-Mount Design for Bathroom, Kitchen & Residential Ventilation
  • Product Parameters

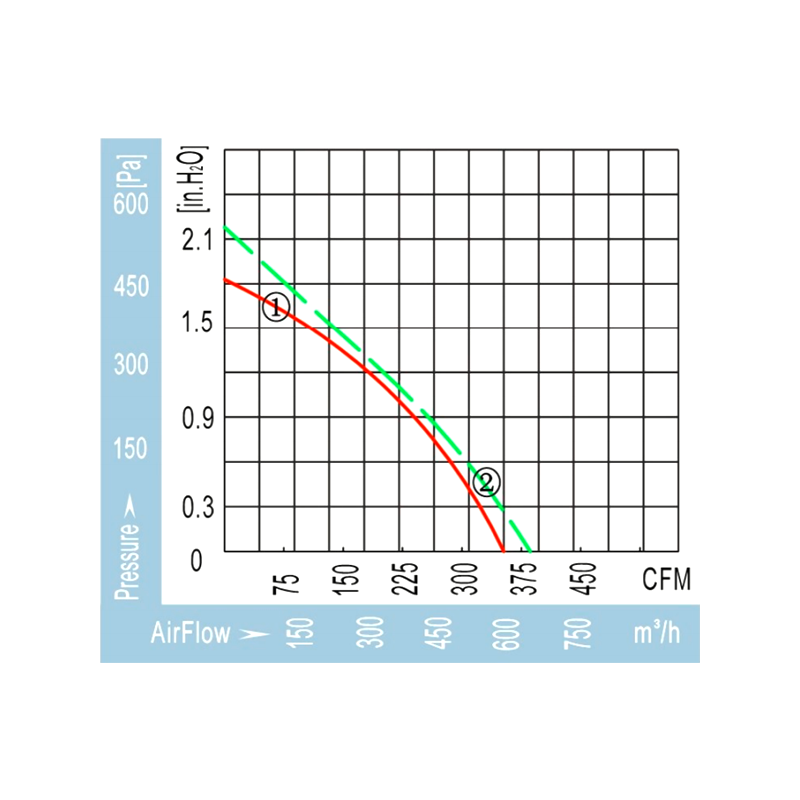

Type Voltage(V) Frequency (Hz) Current (A) Input Power (W) Speed (RPM) Capacitor (μF) Air Flow (m³/h/CFM) Noise (dB(A)) Operating Temperature (Min/Max(℃)) Curve No (#) Approvals
YWFP2E-160-AA 115/120 60 1.07 131 2520 10 650/382 65 -30~+60 ② CCC,CE
YWFP2E-160-AA 220/230 50 0.48 105 2120 3 600/353 63 -30~+60 ① CCC, CE
YWFP2E-160-AA 220/230 60 0.6 133 2100 3 650/382 65 -30~+60 ② CCC, CE

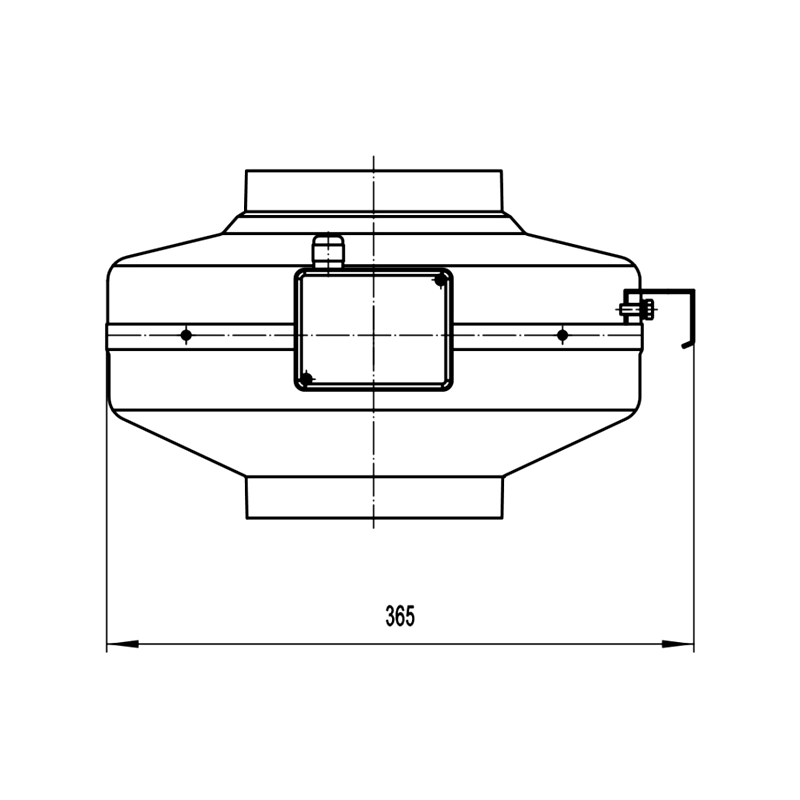

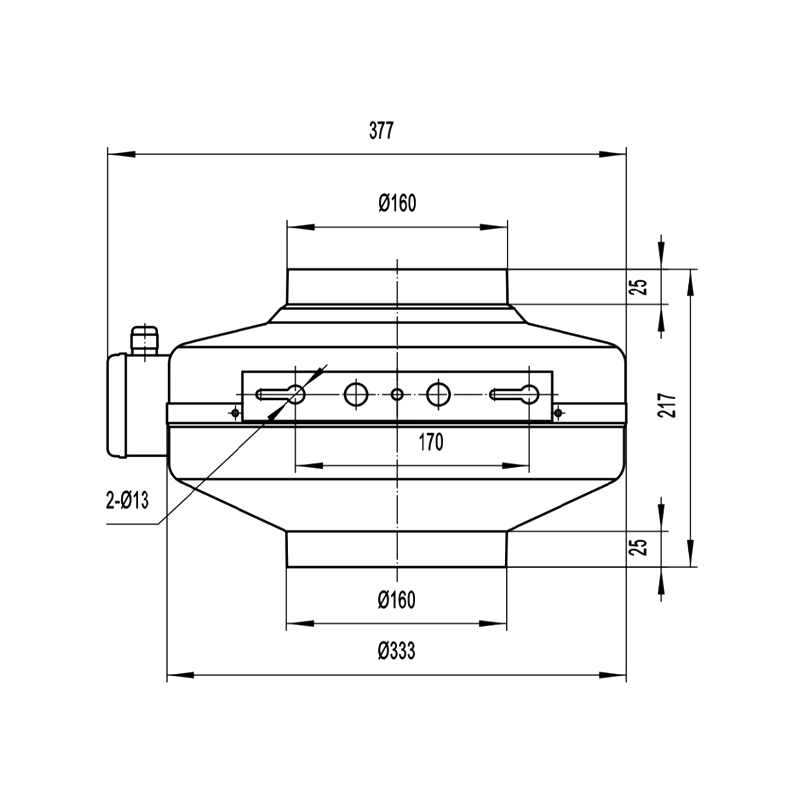

  • Product Dimensions
