Home / Products / Centrifugal Fan / DC Centrifugal Fan / High-Airflow DC Centrifugal Exhaust Fan – 100% Copper Winding, Over-Voltage & Reverse-Polarity Protection, Ideal for Portable Ventilation, Marine & EV Charging Stations

DC Centrifugal Fan

Hangzhou Beron Motor Co., Ltd.

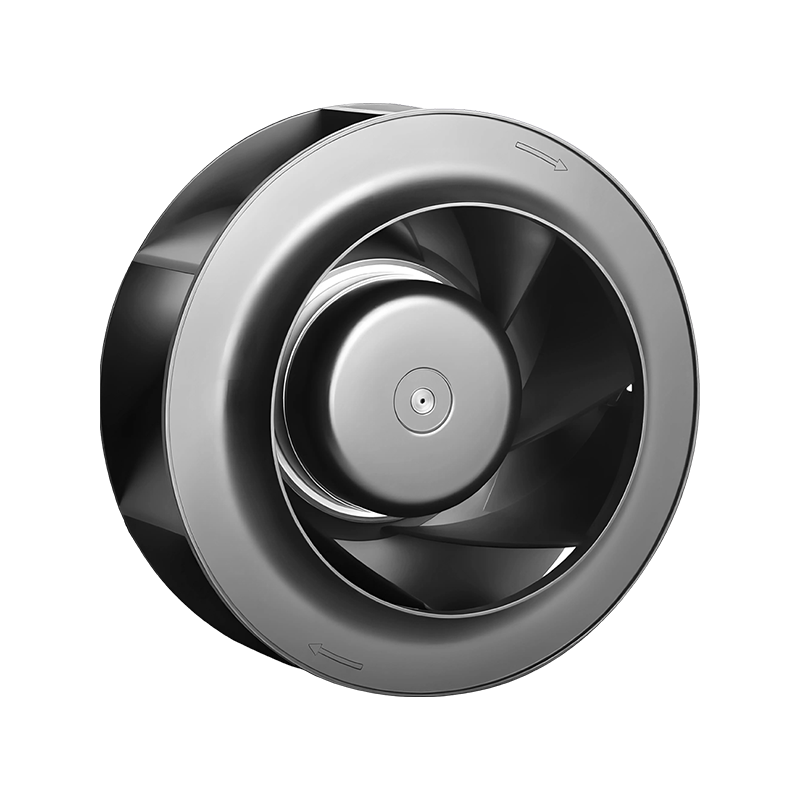

High-Airflow DC Centrifugal Exhaust Fan – 100% Copper Winding, Over-Voltage & Reverse-Polarity Protection, Ideal for Portable Ventilation, Marine & EV Charging Stations

Feedback Signal
FG (Frequency Generator):
Speed pulse output, real-time monitoring of actual speed.
RD (Rotation Detector):
Running/Locking Status Detection.
TACH:
Speed square wave signal, compatible with motherboard standard fan interface.
ALARM:
Fault alarm output (over temperature, over current, stall). Multi-fan unit network supports master-slave synchronization (Master Slave) or multi-machine parallel speed regulation, and adjusts the speed of multiple DC centrifugal fans uniformly through a single control signal. It is suitable for large cabinets or ventilation duct arrays.

Inquiry
  • Product Parameters

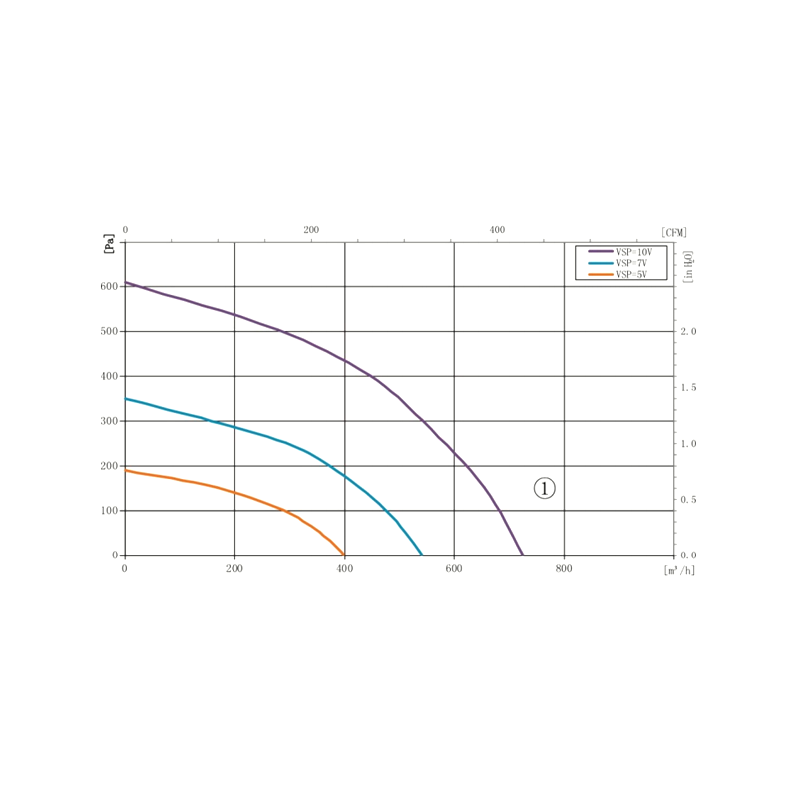

Type Curve Nominal voltage [VDC] Speed [rpm] Power input [W] Current draw  [A] Sound pressure level [dB] Perm. amb. temp. [℃]
B3P190-DC092-016 24 3700 110 4.6 78 -25~+60
  • Product Dimensions
SIGNAL COLOR SPEC
Vs RED DC24V
Vsp YELLOW 0-10VDC/PWM
GND BLUE GND
TACH WHITE 3 Pulse/R
