Low-Voltage DC Centrifugal Fan 24V 48V – PWM Variable Speed, Compact High-Static-Pressure Blower for Battery-Powered & Off-Grid Ventilation

DC Centrifugal Fan is an efficient ventilation device that uses a brushless DC motor as the driving core and uses centrifugal force to radially eject the airflow and guide it out through a volute. Its core working path is: air enters the center of the impeller along the axial direction → the high-speed rotating blades accelerate the air and throw it out radially → the volute collects and guides it to the outlet → converts velocity energy into static pressure energy output. DC centrifugal fans are suitable for scenarios where mains power cannot be connected, or a low-voltage safe power supply is required. They are an ideal choice for mobile devices, off-grid systems, and precision electronic cooling.

Inquiry
  • Product Parameters

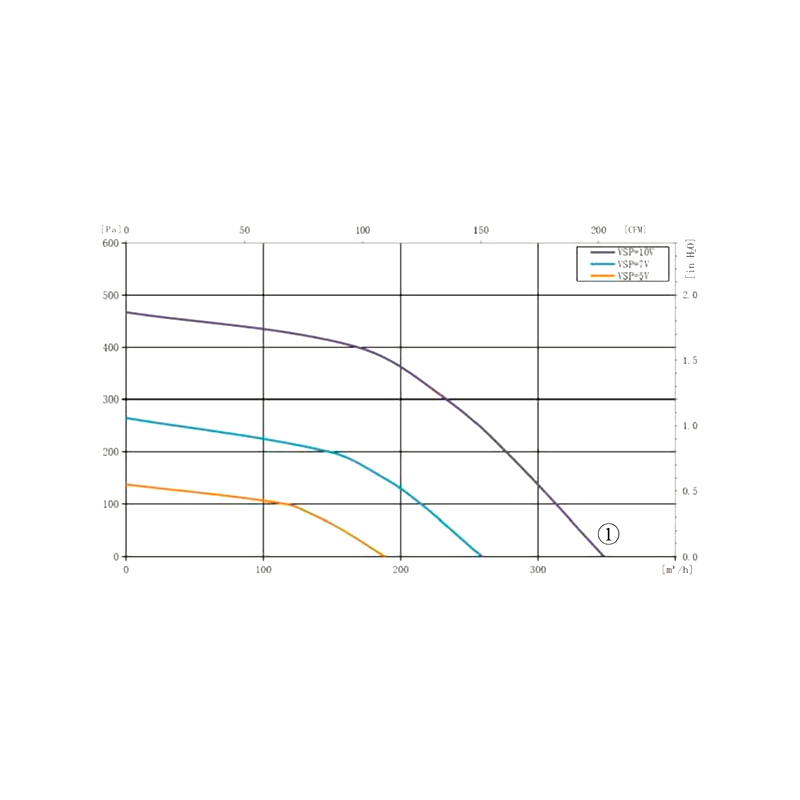

Type Curve Nominal voltage [VAC] Speed [rpm] Power input [W] Current draw [A] Sound pressure level [dB] Perm. amb. temp. [℃]
B3P133-DC072-022 24 4500 55 2.6 70 -25~+60
  • Product Dimensions
SIGNAL COLOR SPEC
Vs RED DC24V
Vsp YELLOW 0-10VDC/PWM
GND BLUE GND
FG WHITE Pulse/R
