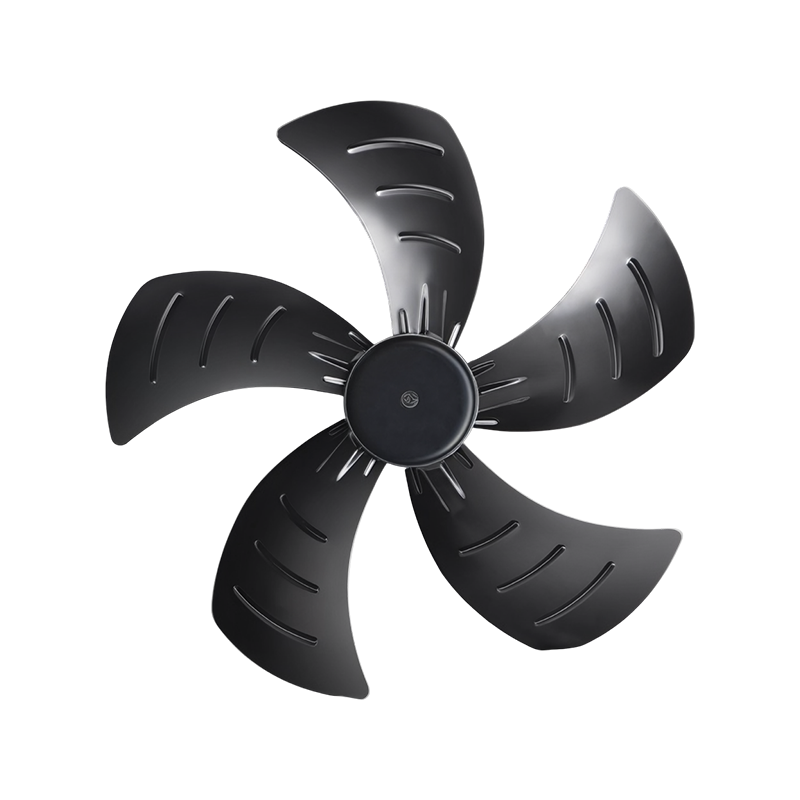

Eco-Friendly EC Axial Flow Fan for European & US Markets - High-Performance Energy-Saving Fan with External Rotor Technology

The EC Axial Fan adopts a permanent magnet synchronous motor (PMSM) and built-in electronic commutation drive, with an overall efficiency of 85% -92%, saving 30% -60% energy compared to AC axial fans of the same level. Under the framework of the EU ErP Directive (EU 327/2011), EC fans are the standard solution for meeting the energy efficiency threshold of IE4/IE5 ultra-high efficiency motors.

For green building projects, the low energy consumption characteristics of EC fans directly support LEED (Energy&Atmosphere) and BREEAM (Energy) rating criteria. Cooperating with on-demand ventilation (DCV) strategy - adjusting the speed in real-time based on indoor CO ₂ concentration or occupancy signal - can save an additional 40% -60% energy in the fresh air system compared to fixed air volume schemes. Meets the compliance requirements of the European and American markets for building energy efficiency and carbon reduction.

Key parameters:
100-240V AC wide voltage input, 50/60Hz adaptive, compatible with global power grids

Inquiry
PREV：Intelligent Stepless Speed EC Axial Fan - Whisper-Quiet External Rotor Motor Cooling Solution for Data Centers & Telecom NEXT：Smart EC Axial Flow Fan featuring Stepless Speed Regulation - Premium Cooling Solution for Sustainable Industrial Ventilation
  • Product Parameters

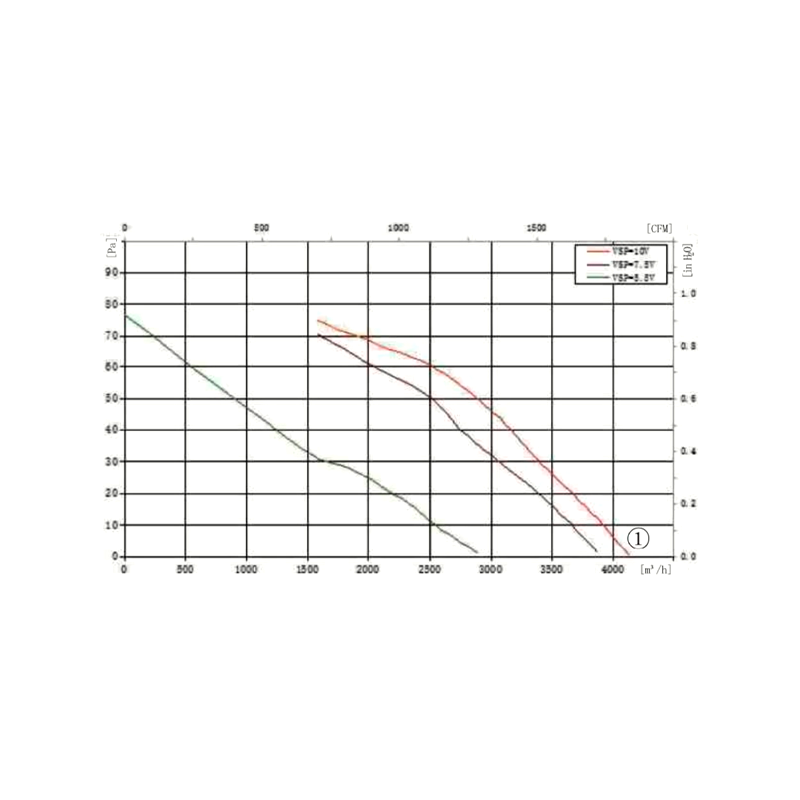

Type Curve Nominal voltage [VAC] Frequency [Hz] Speed [rpm] Power input [W] Current draw [A] Sound pressure level [dB] Perm. amb. temp. [℃]
BA3P450-EC092-001 ① 220 50/60 1080 100 0.72 52 -25~+60
  • Product Dimensions
SIGNAL COLOR SPEC
L BROWN AC220V 50/60Hz
N BLUE AC220V 50/60Hz
PE YELLOW/GREEN EARTH
Vcc RED DC10V Output
Vsp YELLOW 0–10VDC / PWM
GND BLUE GND
FG WHITE 1 Pulse/R
