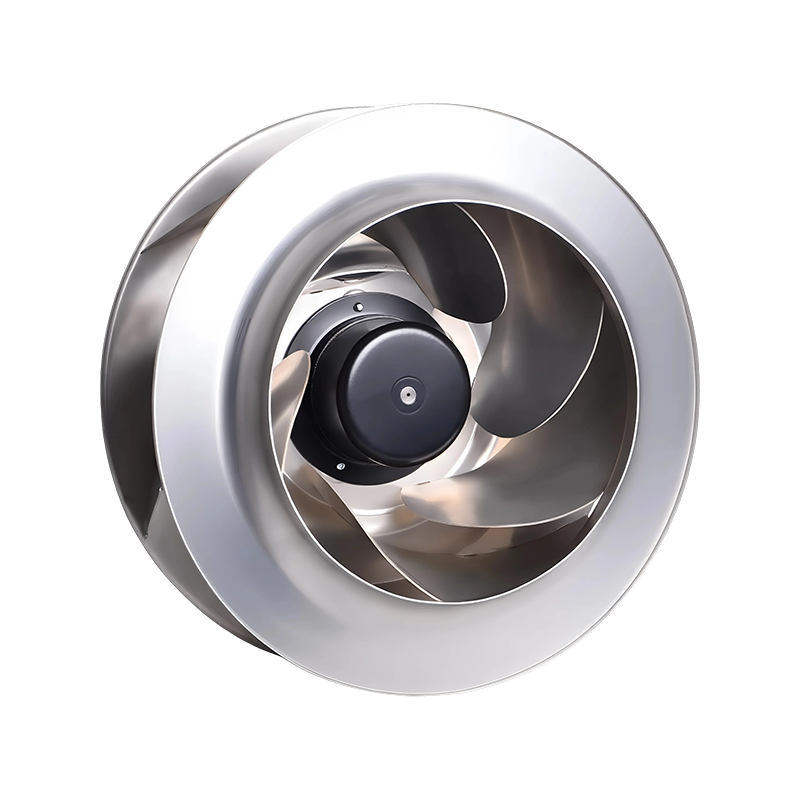

Eco-Friendly EC Centrifugal Blower: Advanced Energy-Saving Technology for AC Upgrade and Green Compliance

Energy-saving renovation scenario:
Data center inter-column air conditioning: Replace AC centrifugal fans with EC centrifugal fans of the same specifications, and the annual electricity cost savings for each fan usually cover the replacement cost within 1.5-2.5 years.

Commercial fresh air unit (AHU/PAU):
EC centrifugal fan reduces the frequency converter link, improves system efficiency, and meets the requirements of on-demand ventilation (DCV) control.

Green building and regulatory compliance:
Compliant with the minimum energy efficiency requirements of the EU ErP 2015 Directive (EU 327/2011) for fans - AC centrifugal fans will no longer meet the energy efficiency threshold for newly installed equipment after 2023.
Directly support the rating of LEED Energy and Atmosphere (EA) and BREEAM Energy categories.
Meet the mandatory energy efficiency compliance requirements for new construction and renovation projects in the European and American markets.

Inquiry
PREV：High-Performance EC Centrifugal Fan for Air Source Heat Pumps - Durable External Rotor Motor Design with Smart Control NEXT：Professional EC Centrifugal Fan for FFU & Air Purification - Low-Noise & High-Static Pressure Filtration Solution
  • Product Parameters

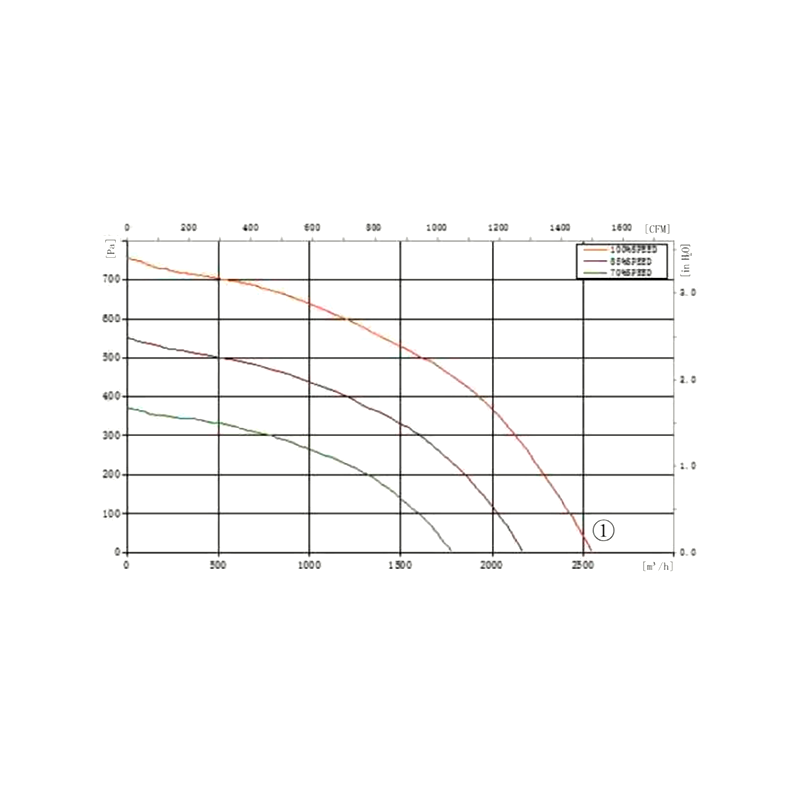

Type Curve Nominal voltage [VAC] Frequency [Hz] Speed [rpm] Power input [W] Current draw [A] Sound pressure level [dB] Perm. amb. temp. [℃]
B3P310-EC102-100 ① 220 50/60 2350 305 1.4 68 -25~+60
  • Product Dimensions
SIGNAL COLOR SPEC
L BROWN AC220V 50/60Hz
N BLUE AC220V 50/60Hz
PE YELLOW/GREEN EARTH
Vcc RED DC10V Output
Vsp YELLOW 0–10VDC/PWM
GND BLUE GND
FG WHITE 12 Pulse/R
