Home / Products / Centrifugal Fan / AC Centrifugal Fan / Compact AC Centrifugal Fan for Tight Spaces - High-Efficiency Cooling Solution for Air Source & Ground Source Heat Pumps

AC Centrifugal Fan

  • Compact AC Centrifugal Fan for Tight Spaces - High-Efficiency Cooling Solution for Air Source & Ground Source Heat Pumps
  • Compact AC Centrifugal Fan for Tight Spaces - High-Efficiency Cooling Solution for Air Source & Ground Source Heat Pumps
  • Compact AC Centrifugal Fan for Tight Spaces - High-Efficiency Cooling Solution for Air Source & Ground Source Heat Pumps
Hangzhou Beron Motor Co., Ltd.

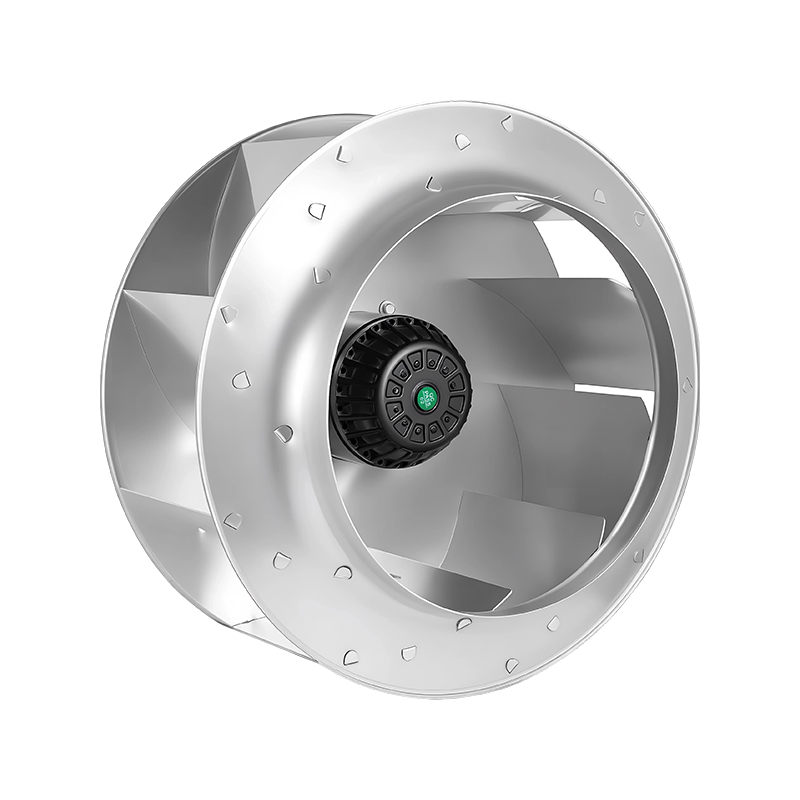

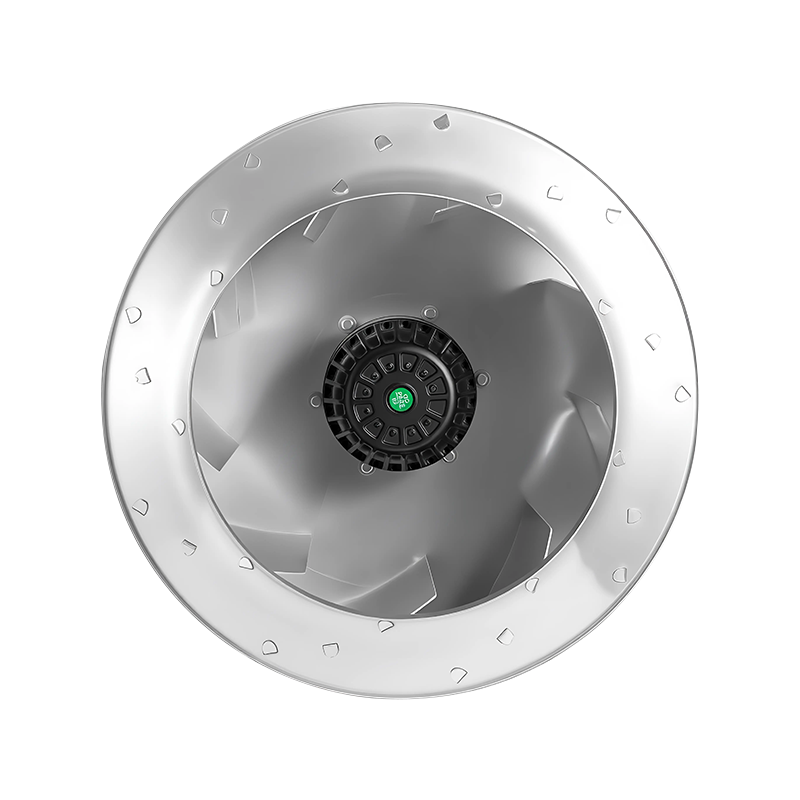

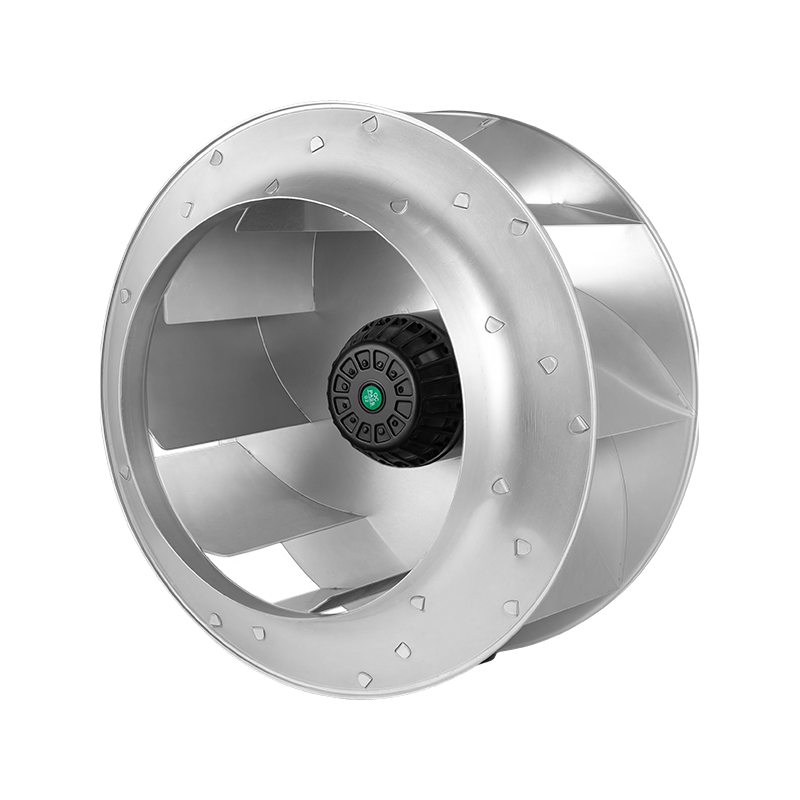

Compact AC Centrifugal Fan for Tight Spaces - High-Efficiency Cooling Solution for Air Source & Ground Source Heat Pumps

Production Process
Precision Casting and Stamping: Ensures dimensional accuracy of components and improves assembly fit.
Automatic Winding: Increases slot fill factor and enhances motor magnetic field stability.
Comprehensive Balancing: Achieves G2.5 dynamic balancing precision.

Q: How to ensure consistent factory performance?
Die casting molds/stamping molds with the same model of impeller have unique numbers and are regularly scanned and verified in 3D; Locking the design parameters of the snail shell shape; Factory run tests are conducted on each unit, with air volume tolerance of ± 5%, current tolerance of ± 10%, and noise tolerance of+3 dB (A). If it exceeds the tolerance, it will be automatically judged as unqualified. Each unit comes with a serial number that can be traced back to dynamic balancing data and test records.
Q: What industrial scenarios are supported?
Industrial dust removal and smoke exhaust, FFU clean workbench, explosion-proof exhaust for painting and spray painting rooms, smoke exhaust for commercial kitchens, boiler induced draft. Optional explosion-proof motor (ATEX), stainless steel SUS304/SUS316 impeller, high-temperature H-class insulation.

Inquiry
PREV：No previous article NEXT：Durable Metal AC Backward Centrifugal Fan for Large-Scale Filtering & FFU - High-Performance Air Exchange in Industrial Environments
  • Product Parameters

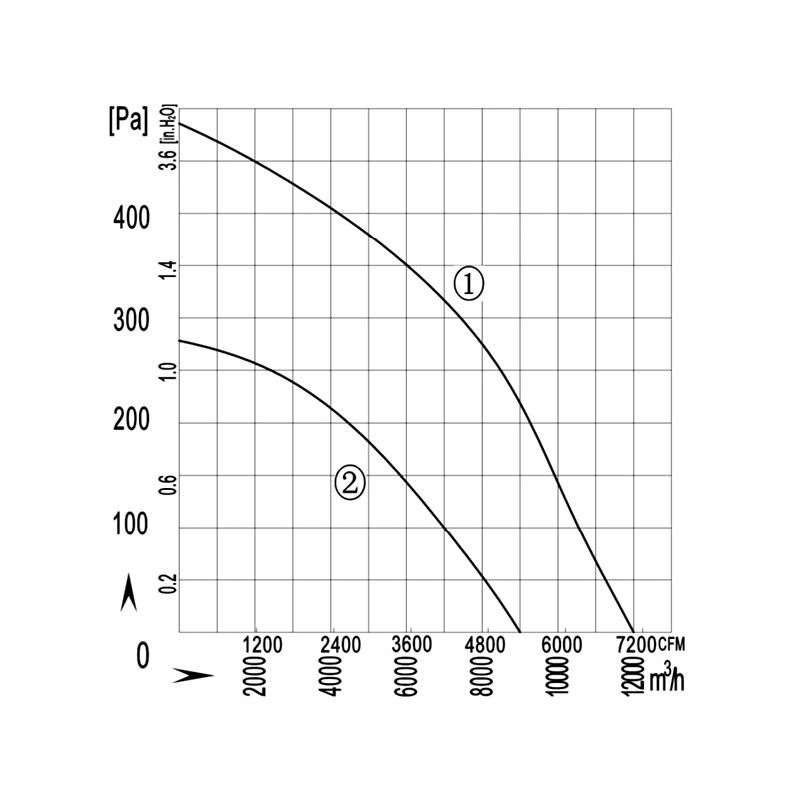

Type Voltage(V) Frequency (Hz) Current (A) Input Power (W) Speed (RPM) Capacitor (μF) Air Flow (m³/h/CFM) Noise (dB(A)) Operating Temperature (Min/Max(℃)) Curve No (#) Approvals
YWFH6D-630-293-BA 380/400 50 3.8 1500 900 / 12000/7059 80 -30~+60 ① CCC, CE
YWFH8D-630-293-BA 380/400 50 1.7 700 700 / 9000/7059 72 -30~+60 ② CCC, CE

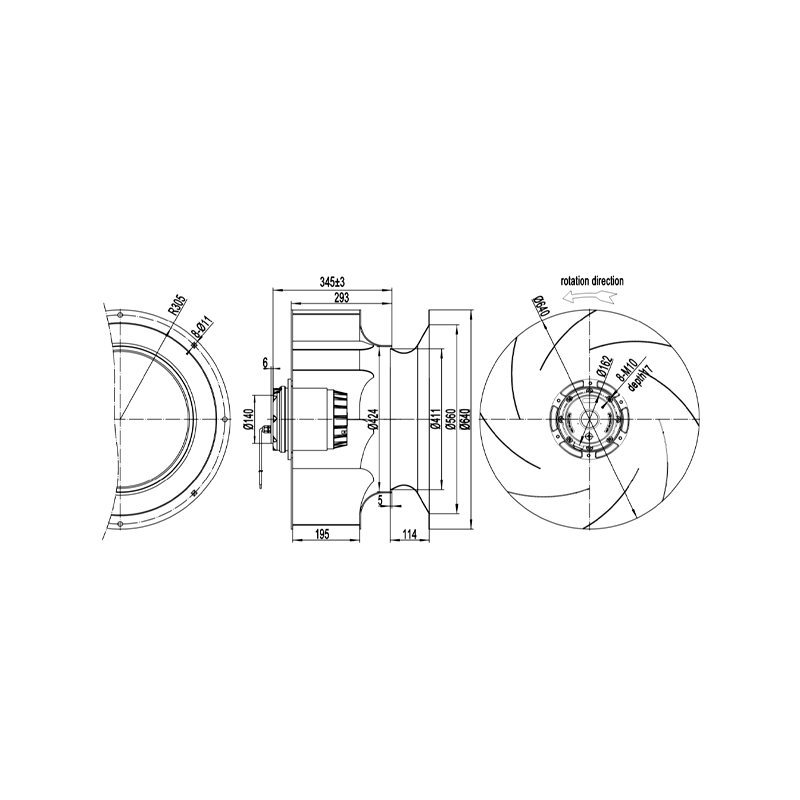

  • Product Dimensions
