Home / Products / Duct Fan / AC Duct Fan / CE & RoHS Certified AC Inline Duct Fan – 110V/220V Dual-Voltage, Plug-and-Play Design, Low Maintenance for Greenhouse Air Circulation, Server Room Cooling & Dust Extraction

AC Duct Fan

Hangzhou Beron Motor Co., Ltd.

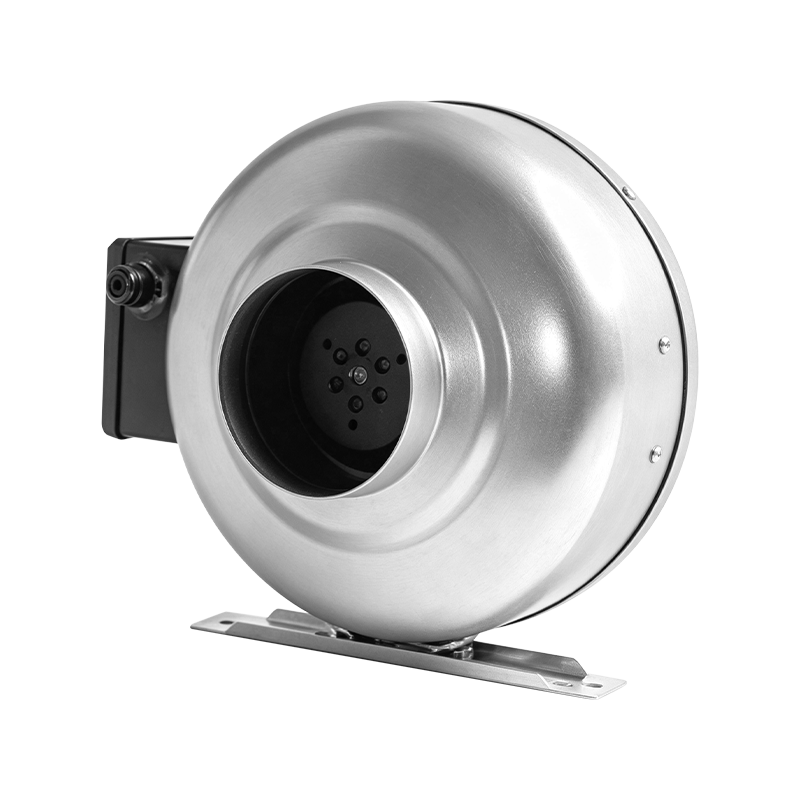

CE & RoHS Certified AC Inline Duct Fan – 110V/220V Dual-Voltage, Plug-and-Play Design, Low Maintenance for Greenhouse Air Circulation, Server Room Cooling & Dust Extraction

Q: Is installation convenient?
The flange joint can be directly inserted into the standard air duct without the need for an adapter; Standard installation bracket, capable of horizontal/vertical multi-angle installation; Both ends come with protective nets. The installation time for a single unit is about 10-15 minutes, making it equally convenient to install new pipes and renovate old ones.

Q: Is long-term operation reliable?
Pure copper winding motor+F-class insulation+double ball bearings, designed for a lifespan of 40000+hours. Galvanized steel sheet shell for rust prevention. Before leaving the factory, each unit is powered on for operation testing to ensure that the direction of operation, current, and noise are qualified.

Inquiry
  • Product Parameters

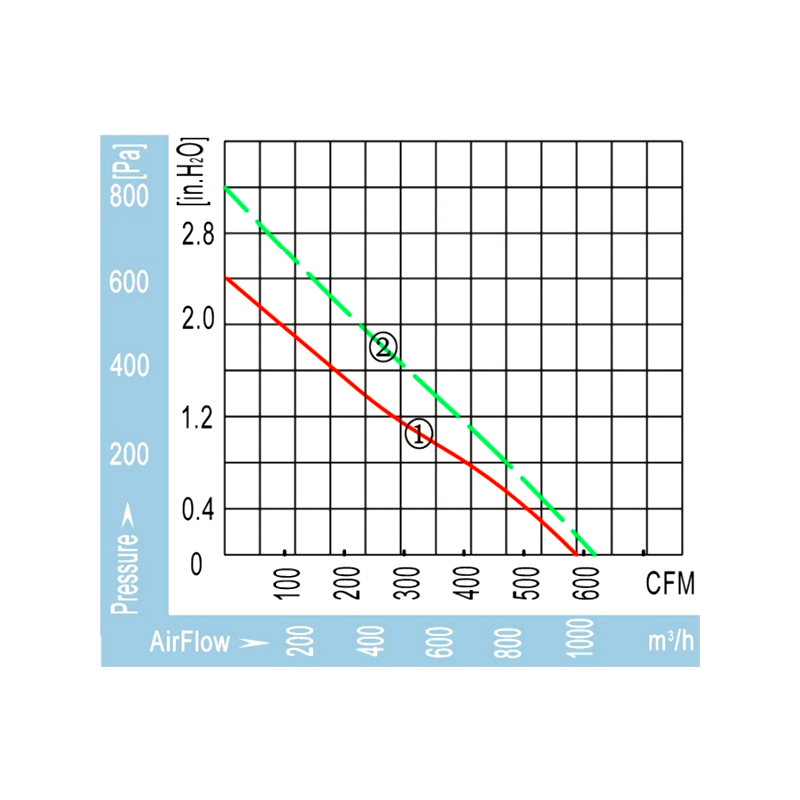

Type Voltage(V) Frequency (Hz) Current (A) Input Power (W) Speed (RPM) Capacitor (μF) Air Flow (m³/h/CFM) Noise (dB(A)) Operating Temperature (Min/Max(℃)) Curve No (#) Approvals
YWFP2E-250-AA 115/120 60 1.9 220 2600 18 1050/618 68 -30~+60 CCC,CE
YWFP2E-250-AA 220/230 50 0.71 156 2380 5 1000/588 63 -30~+60 CCC,CE
YWFP2E-250-AA 220/230 60 0.93 207 2340 5 1050/618 68 -30~+60 CCC,CE

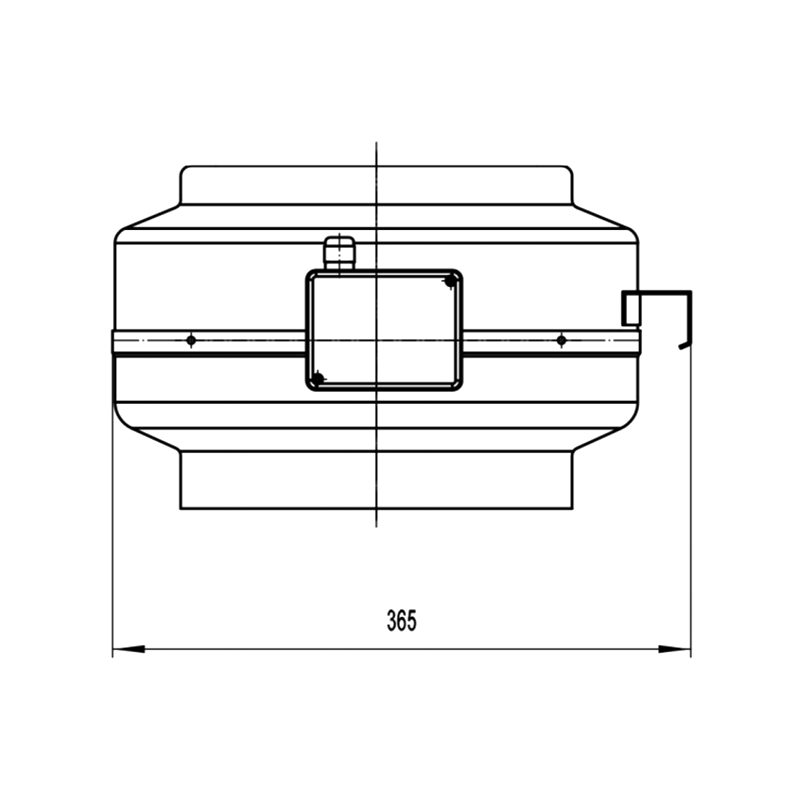

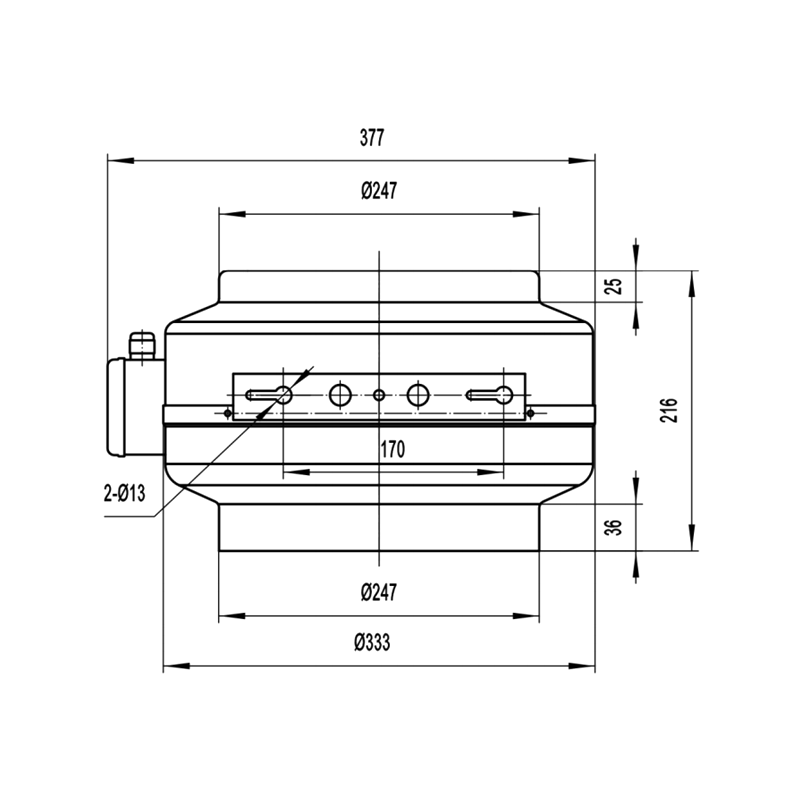

  • Product Dimensions
